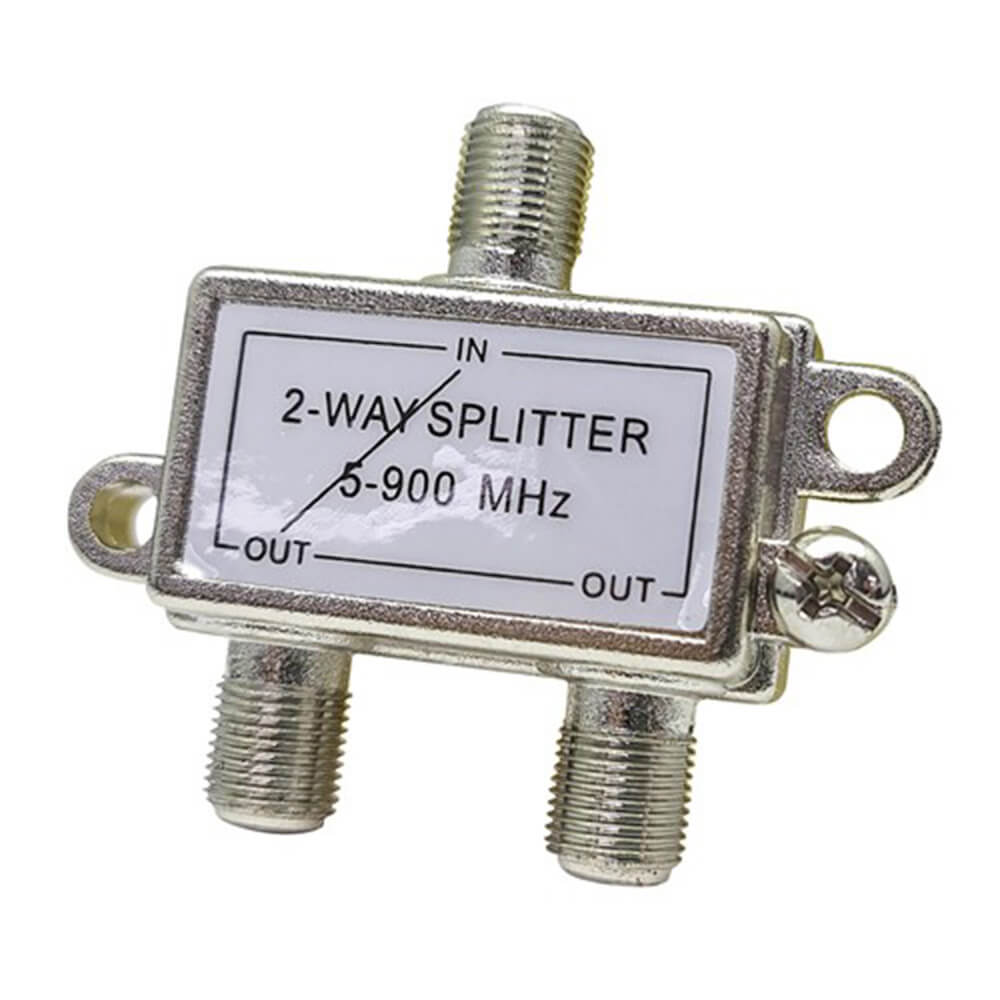

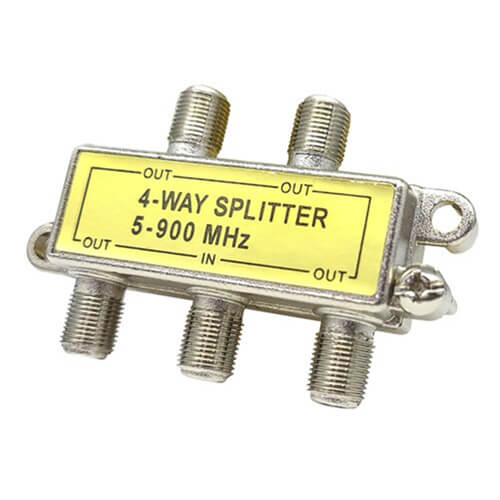

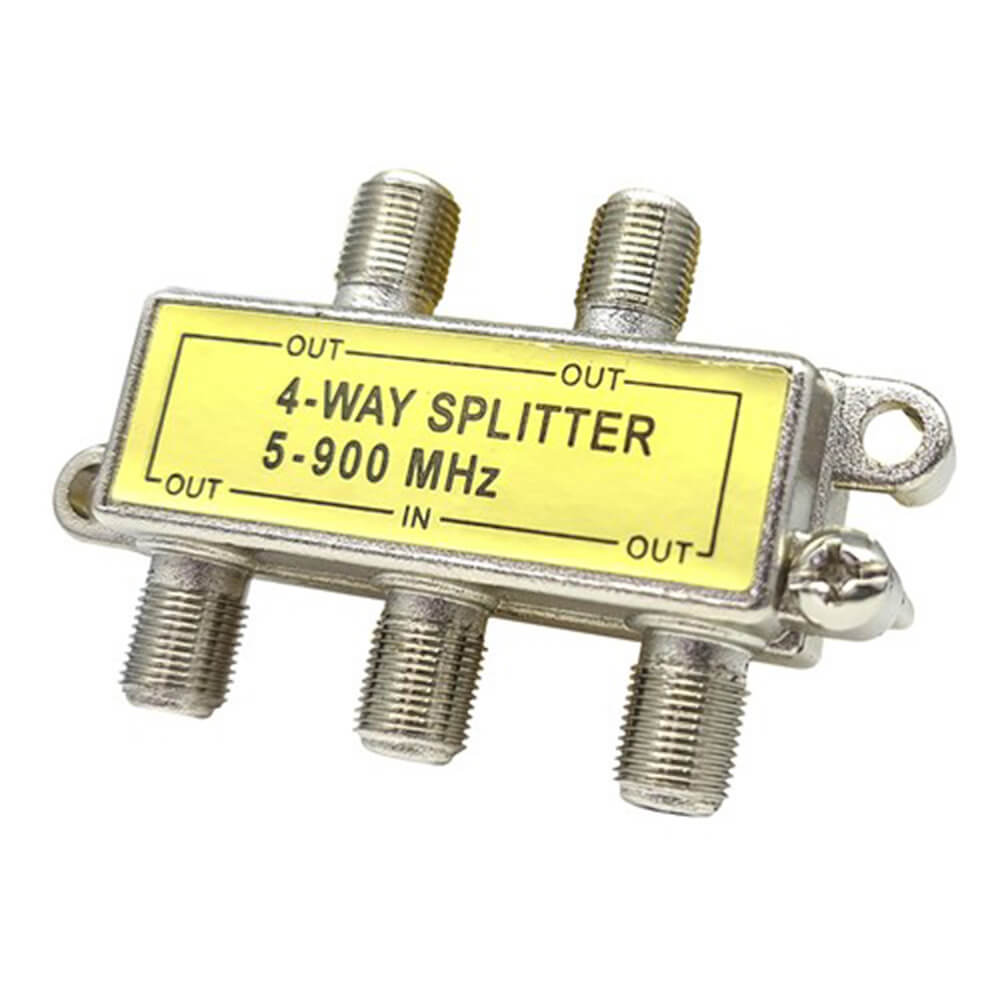

TV Splitter with Power Pass F Connectors Die Cast

Roll over image to zoom in Click on image to zoom

TV Splitter with Power Pass F Connectors Die Cast

TechBrandsSKU: 164219

Packaged Volume : 0.03l
Packaged Weight : 0.04kg
Packaged Length : 5.5cm
Packaged Width : 4.2cm
Packaged Height : 1.5cm
Type of Plugs/Sockets : F Type
Number of Outputs : 2ch
Housing Material : Metal
Frequency Bandwidth : 5MHz, 900MHz
Power Pass : true
RF Screening : true

Option: 2-Way

Variant

Price:

$21.99

Stock:

In stock

Quantity:

Canada Post Announcement - The Canadian Union of Postal Workers (CUPW) has started a national strike. Canada Post’s operations are temporarily suspended as of 27 November 2024. While we are doing all we can to deliver your parcels, including changing our last mile delivery partner, please expect delays. While new orders from 27 November 2024 will bypass Canada Post, orders sent before this date and still not received could be stuck in limbo until the strike is resolved. For the latest information and service updates, visit Negotiation Page

Share this product

These have power pass on the input to one output. This is to allow voltage up through the splitter to power a masthead amplifier or satellite dish LNA. These allow the voltage on one port only, so if anything goes wrong, all parts are not affected by low frequency shorts.

Supplied with mounting screws.

Product Specifications
