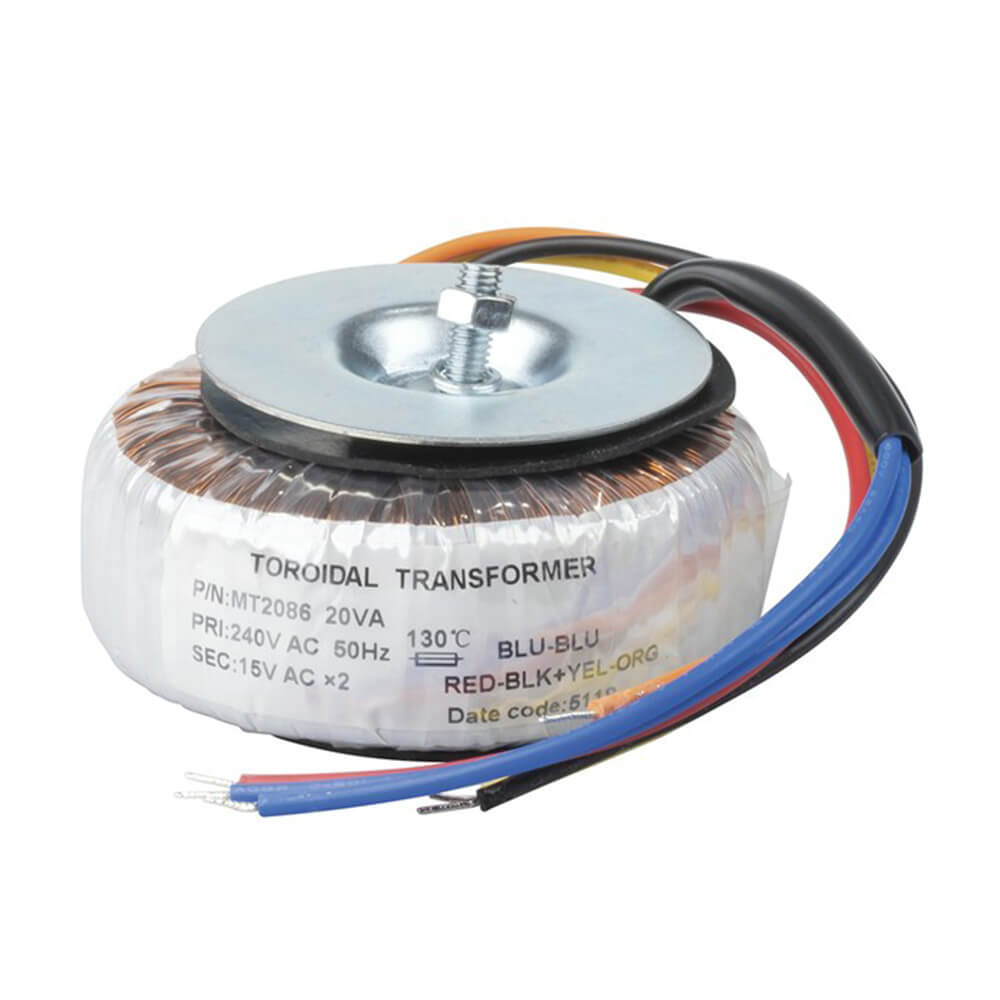

Toroidal Low Profile Transformer (20V)

TechBrandsSKU: 165159

AC current rating : 1.33A
AC Voltage rating : 30V
Continuous Power : 20VA
Height : 32mm
Diameter : 75mm
Packaged Volume : 0.45l
Packaged Weight : 0.5kg
Packaged Length : 9.2cm
Packaged Width : 9.2cm
Packaged Height : 5.3cm
Type of Transformer : Toroidal
Secondary Winding Configuration : Dual Winding
Diameter : 27mm

Option: 15V plus 15V

Variant

Price:

$48.99

Stock:

In stock

Quantity:

Canada Post Announcement - The Canadian Union of Postal Workers (CUPW) has started a national strike. Canada Post’s operations are temporarily suspended as of 27 November 2024. While we are doing all we can to deliver your parcels, including changing our last mile delivery partner, please expect delays. While new orders from 27 November 2024 will bypass Canada Post, orders sent before this date and still not received could be stuck in limbo until the strike is resolved. For the latest information and service updates, visit Negotiation Page

Share this product

WHY A TOROID?

- Smaller size and weight to meet modern slimline requirements

- Low electrically induced noise demanded by compact equipment

- High efficiency enabling conservative rating whilst maintaining size advantages

- Simple, quick, single bolt mounting

The Toroidal transformers is now accepted as the standard in the industry, quality mode to ISO 9000 overtaking the obsolete laminated type. Industry has been quick to recognise the advantage toroidals offer in size, weight, and lower radiated field.

Current ratins on toroidal transformers. Can be used in 2 ways:-

A) Both secondary windings in series - double volts

B) Both secondary windings in parallel - higher amps. The windings need to be connected in pahse.

20VA LOW PROFILE

The height is only 32mm, which means they will fit into a 44mm rack case.

- Size 0/D 75, I/D 27 x 32mm

Secondary Series Secondary Parallel

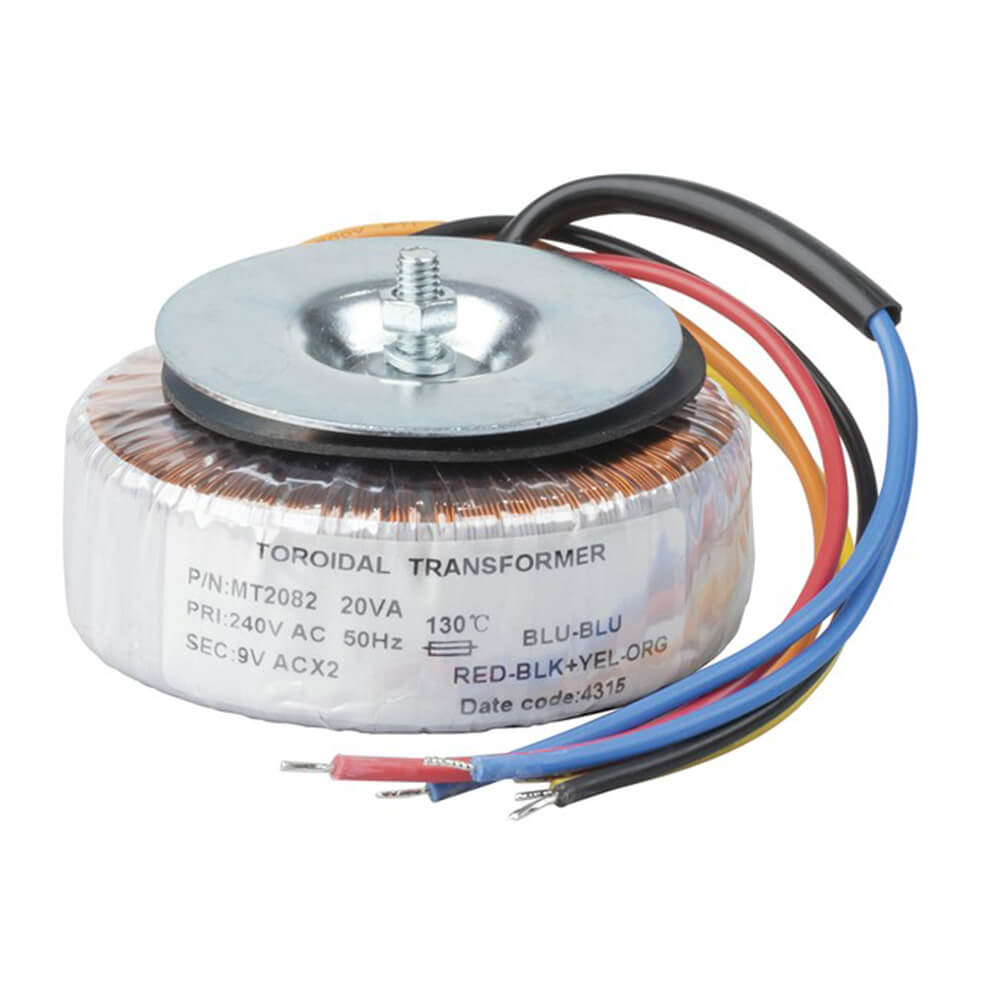

Cat. MT-2082 9+9 Volts 1
