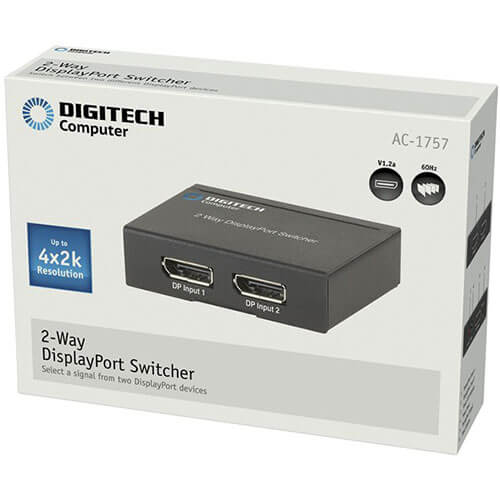

4K UHD With the flick of a switch this product allows you to select from one of two DisplayPort sources to output to a single computer monitor, TV or projector. Suitable for when you want the flexibility of switching between two audio visual sources for the one display device. DisplayPort can be used to transmit audio and video simultaneously, but each one is optional and can be transmitted without the other. HDMI and DVI output achievable with use of a passive adaptor or Mini DisplayPort with the use of an additional converter cable. Typically suited for small-scale use in the home, office, shop fronts or classrooms where two sources need to be switched. Compliant with VESA DisplayPort standard link rates of 1.62, 2.7 and 5.4Gbps. Switching is operated manually on the front of the unit. Includes a mains power adaptor.
Features:
DisplayPort: V1.2a Audio: up to 7.1 Channel Compliant: DP++, HDCP Power Consumption: 3W
Product Specifications
- Length : 71.0mm
- Width : 61.0mm
- Height : 21.0mm
- DC Plugpack Voltage : 5.0V
- DC Current Draw : 1.0A
- Item Connection : Barrel Plug
- Suitable PSU Included : true
- Maximum Horizontal Resolution : 4096.0Pixel
- Maximum Vertical Resolution : 2160.0Pixel
- Switcher/Converter Type : Manual Switcher
- Input type : Digital Video
- Input Connection : Display Port
- Number of inputs : 2.0pc
- Output Type : Digital Video
- Output Connection : Display Port
- Number of Outputs : 1.0pc
- Power Requirement : External Power Required
| Length : 21.5 cm |
Width : 15 cm |
| Height : 6 cm |
