Description

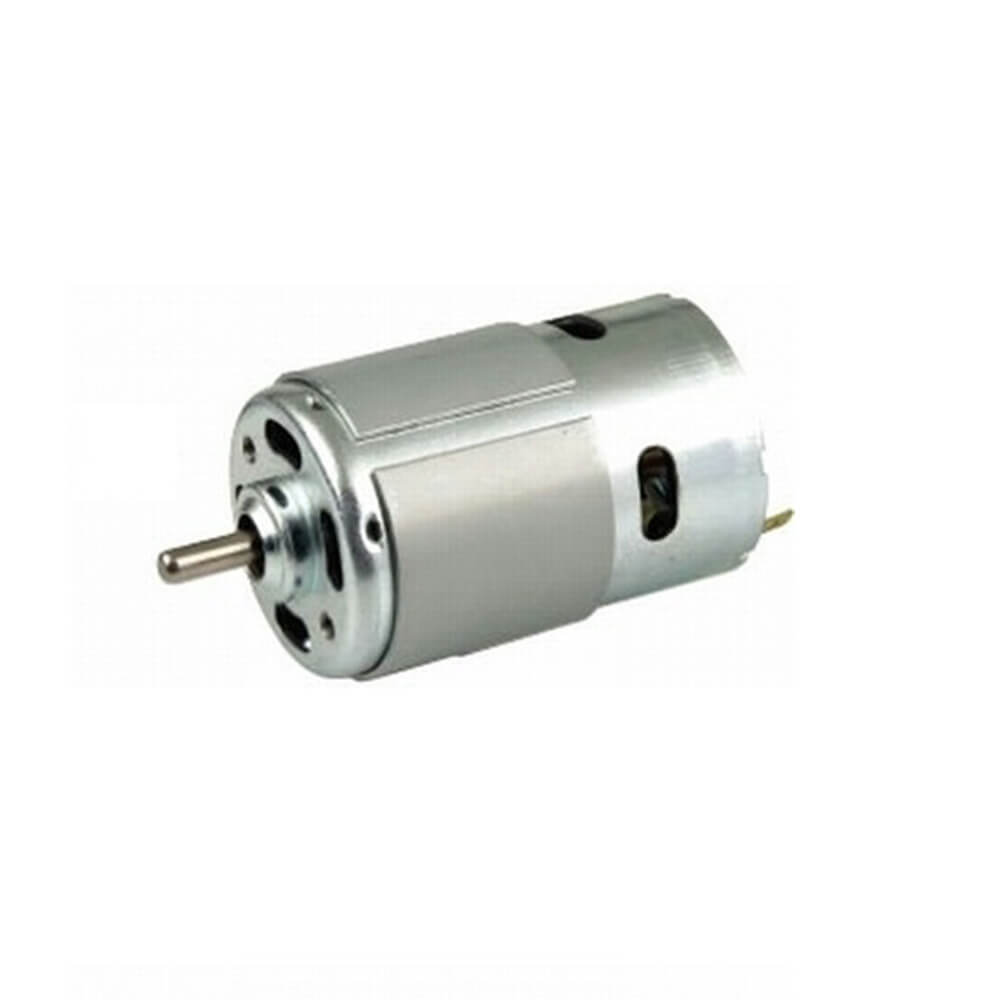

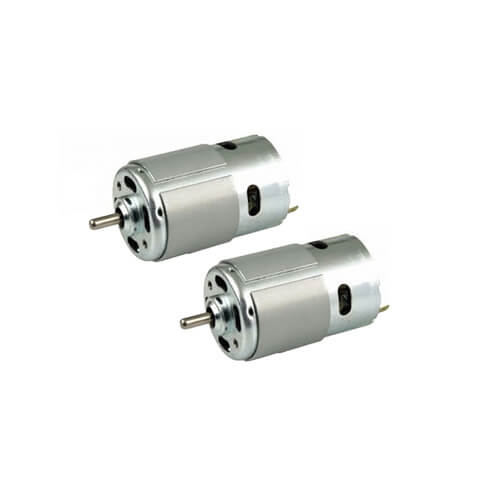

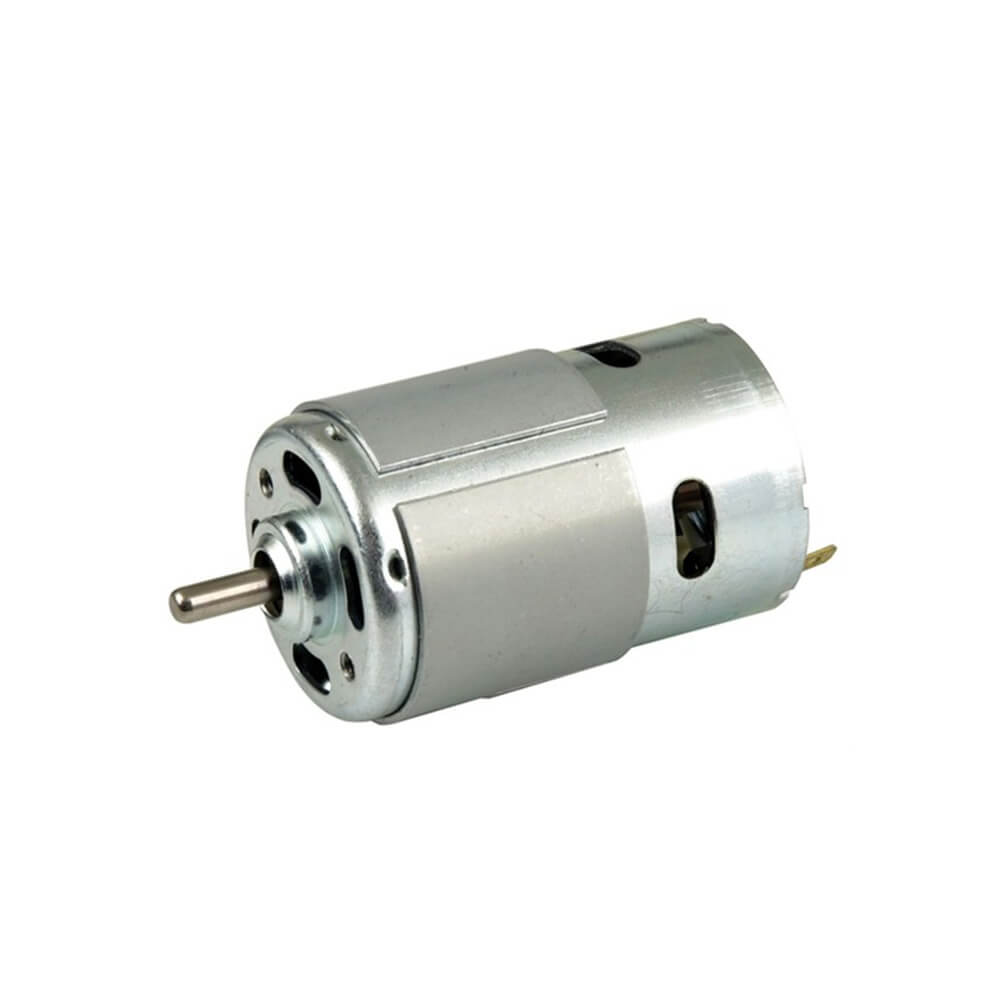

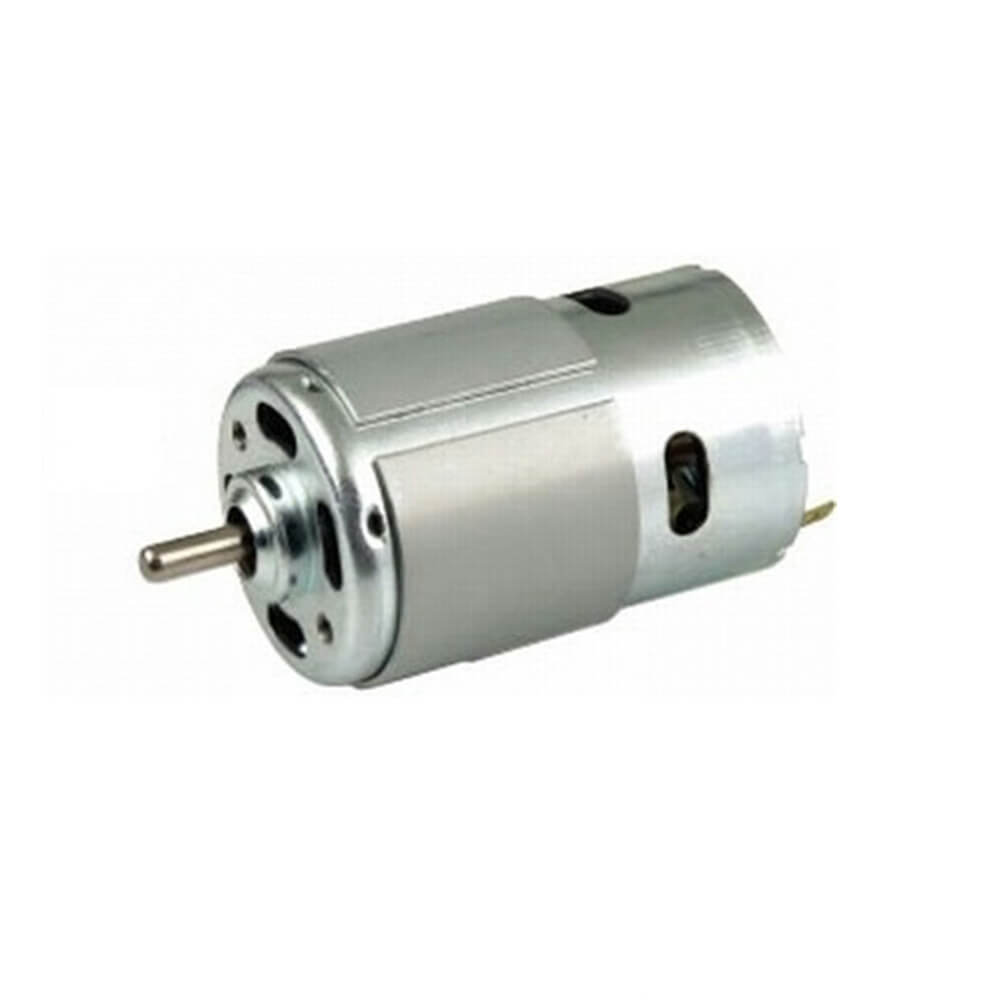

Astonishing speed and power from these compact ferrite magnet types.
All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.
Operating Voltage: 12VDC
At Stall:
Torque: 6.5kg.cm
Current: 63A
Product Specifications
- Length : 85mm
- Diameter : 42mm
- DC Voltage : 6V, 18V
- Motor Type : High Power
- Motor Nominal Voltage : 12V
- No load current : 1.3A
- No load RPM : 9700RPM
- Full load current : 57A
- Full load torque : 6000g.cm
- Max efficiency : 69%
- Max efficiency power : 63.5W
- Max efficiency RPM : 8500RPM
- Maximum efficiency torque : 709g.cm
- Max. efficiency current : 5.3A
- Shaft diameter : 5mm
- Shaft length : 19mm
| Length : 9.2 cm | Width : 4.4 cm |
| Height : 4.5 cm |
