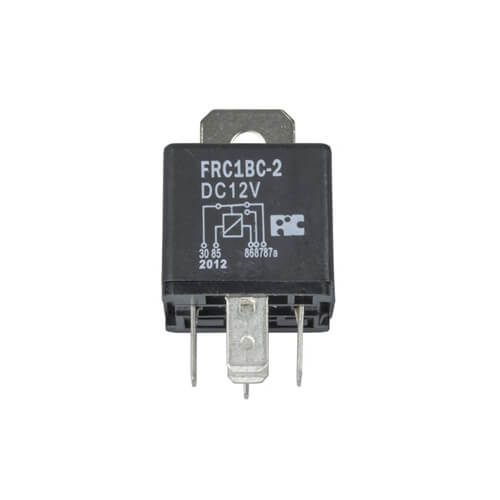

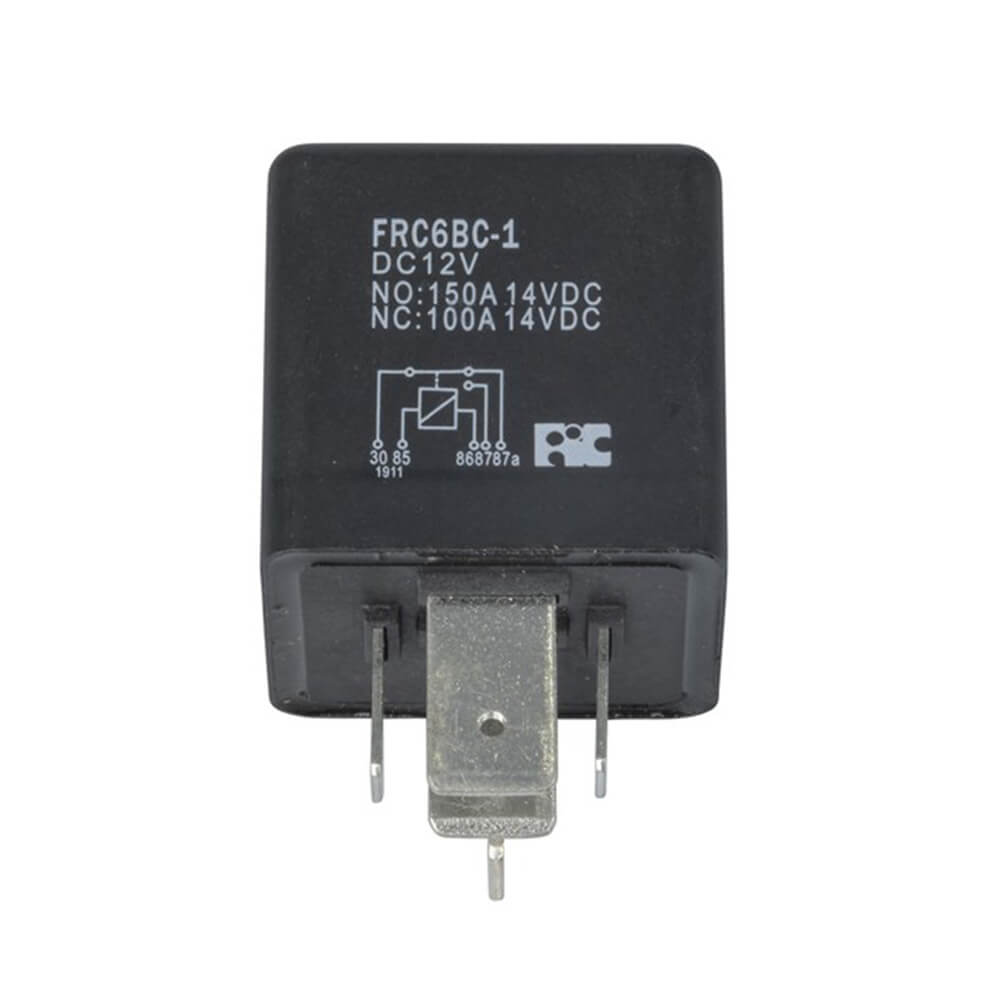

SPDT Horn Relay (12V)

TechBrandsSKU: 165302

DC Voltage : 12V
DC Current Draw : 150A
Packaged Volume : 0.06l
Packaged Weight : 0.06kg
Packaged Length : 5cm
Packaged Width : 3.5cm
Packaged Height : 3.5cm
Contact format : SPDT
Coil Resistance : 30Ω
DC Contact Voltage : 12V
DC Switching Current (Opening) : 150A
Operation Time : 10ms
Release Time : 5ms

Option: 150A

Variant

Price:

$33.99

Stock:

In stock

Quantity:

Can I get this before Christmas?
✔️ Delivery within Canada
✔️ International Delivery

Note: Products unavailable for pre-Xmas delivery will still be shipped as quickly as possible, with a likely delivery date some time after Xmas.

Share this product

When too much current isn't enough - 150A contacts for ultra high power applications such as multiple lights, high power audio etc, in a small package.

Specifications:

Contacts: SPDT

Contact resistance: 30m ohm max

Contact rating: 150A

Coil voltage: 12VDC

Coil resistance: 50 ohms

Rated coil current: 240mA

Operate time: 10ms

Release time: 5ms

Operational life: 100,000 cycles

Product Specifications

DC Voltage : 12V
DC Current Draw : 150A
Packaged Volume : 0.06l
Packaged Weight : 0.06kg
Packaged Length : 5cm
Packaged Width : 3.5cm
Packaged Height : 3.5cm
Contact format : SPDT
Coil Resistance : 30Ω
DC Contact Voltage : 12V
DC Switching Current (Opening) : 150A
Operation Time : 10ms
Release Time : 5ms

Length : 5 cm	Width : 3.5 cm
Height : 3.5 cm
