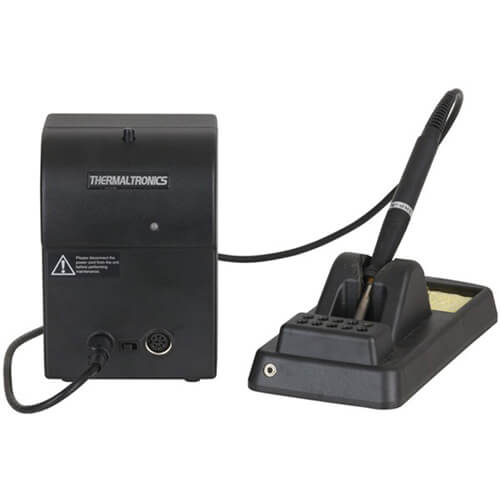

Thermaltonix ESD Safe Soldering System Station (55W)

This outstanding new soldering station uses a proven technology, Curie point temperature sensing with a new twist. The tip is heated by RF induction to bring the tip up to operating temp. The soldering iron tip is a heater. Older Curie point soldering irons like the famous Weller W-TCP used a separate Curie-switch, heater and tip. There are thermocouples, varistors or other temp sensors that only complicate things. The thermal inertia with the Thermaltronics product is far lower.

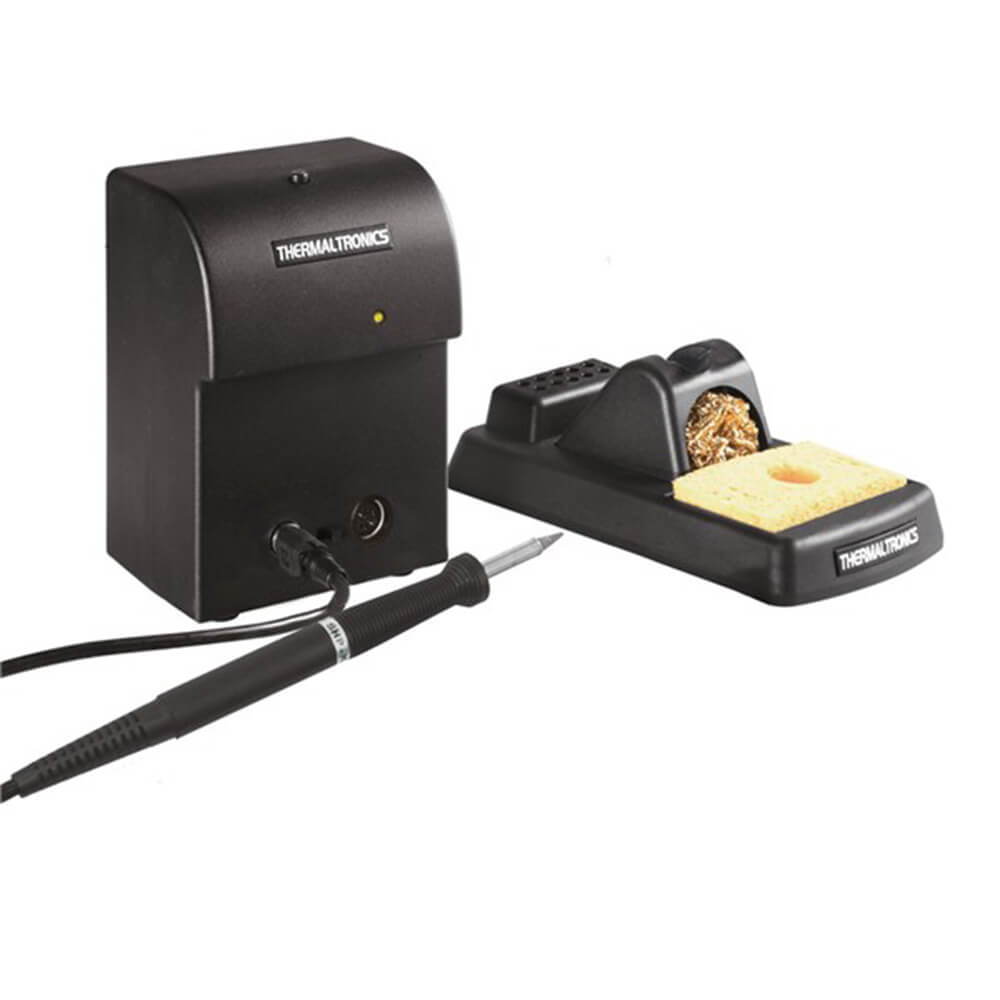

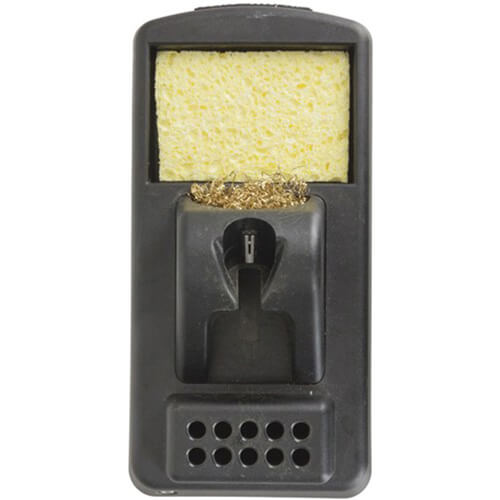

The system consists of the base power unit which connects to mains 240V. The soldering pencil accepts a cartridge tip (which is also the heating element) and a burn-proof silicon rubber cord. The third element in the system is the pencil iron stand. This stand features a 'dry'-type tip cleaner which is made from machine curled brass and also a standard sulphide free tip sponge.

Other Features / Specifications:

• Low power idle
• Under 10 second heat-up
• Rapid recovery from soldering load. No overshoot
• No calibration needed
• Can work leaded and unleaded solder

Soldering Iron:

• Tip to GND Resistance: <2 Ohms DC
• Tip to GND Potential: 2mW, true RMS 50 - 500Hz

TIPS TO SUIT:

• TS-1586: 0.5mm Conical Sharp Tip
• Tip Width: 0.50mm (0.02";)
• Tip Length: 11.80mm (0.41";)
• TS-1587: 1.0mm Conical Sharp Tip
• Tip Width: 1.0m (0.04";)
• Tip Length: 14.40mm (0.57";)
• TS-1588: 2.5mm Chisel Tip
• Tip Style: Chisel 30 degrees
• Tip Width: 2.5mm (0.10";)
• Tip Length: 10.30mm (0.41";)

Brand: Thermaltronis

Product Specifications

• Width : 110.0mm
• Height : 155.0mm
• Depth : 92.0mm
• Weight : 1.3kg
• Mains Voltage Range : 240.0V
• Frequency : 470.0Hz
• Soldering iron type : Soldering Iron
• Soldering Power Rating : 50.0W
• Temperature : 350.0 Degrees C
• Spare Tips Available : true
• Alternate Tips Available : true
• ESD Iron : true
• Lead free iron : true
• Type : Conical, Chisel
• Size : 0.5mm, 2.5mm
