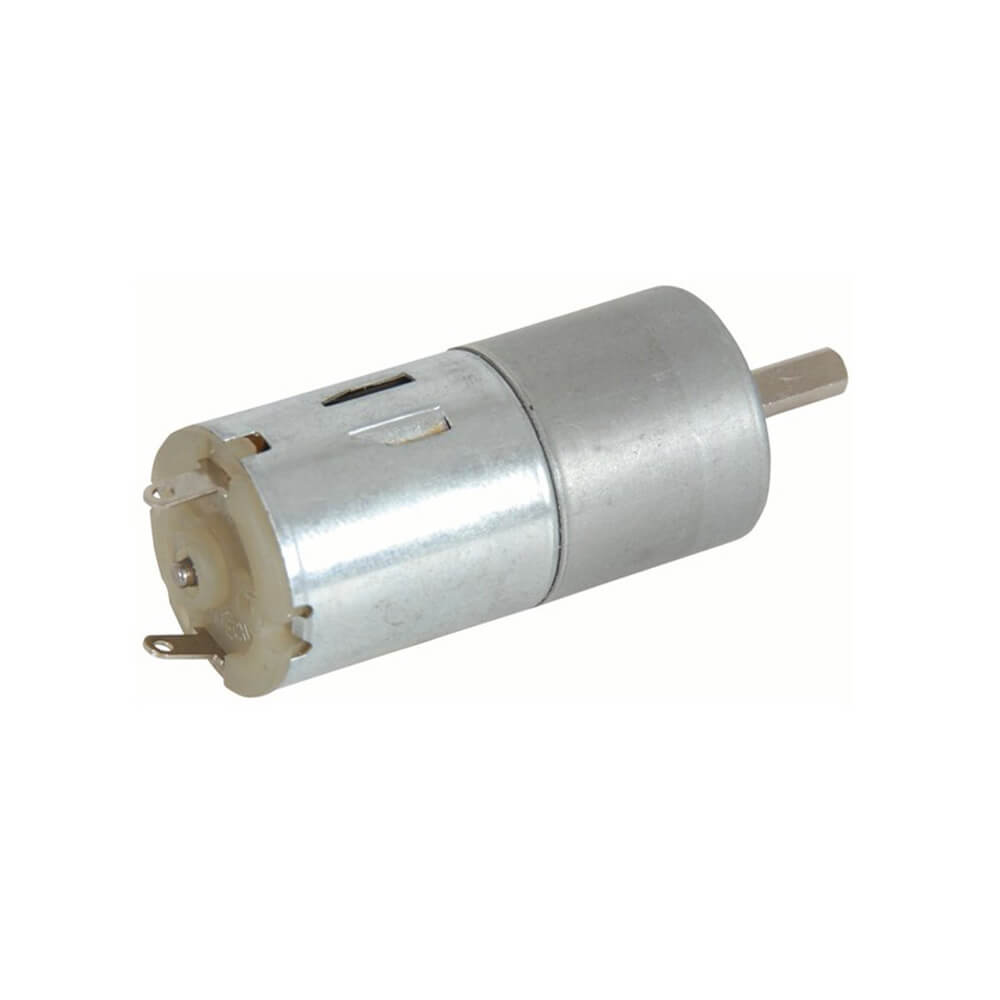

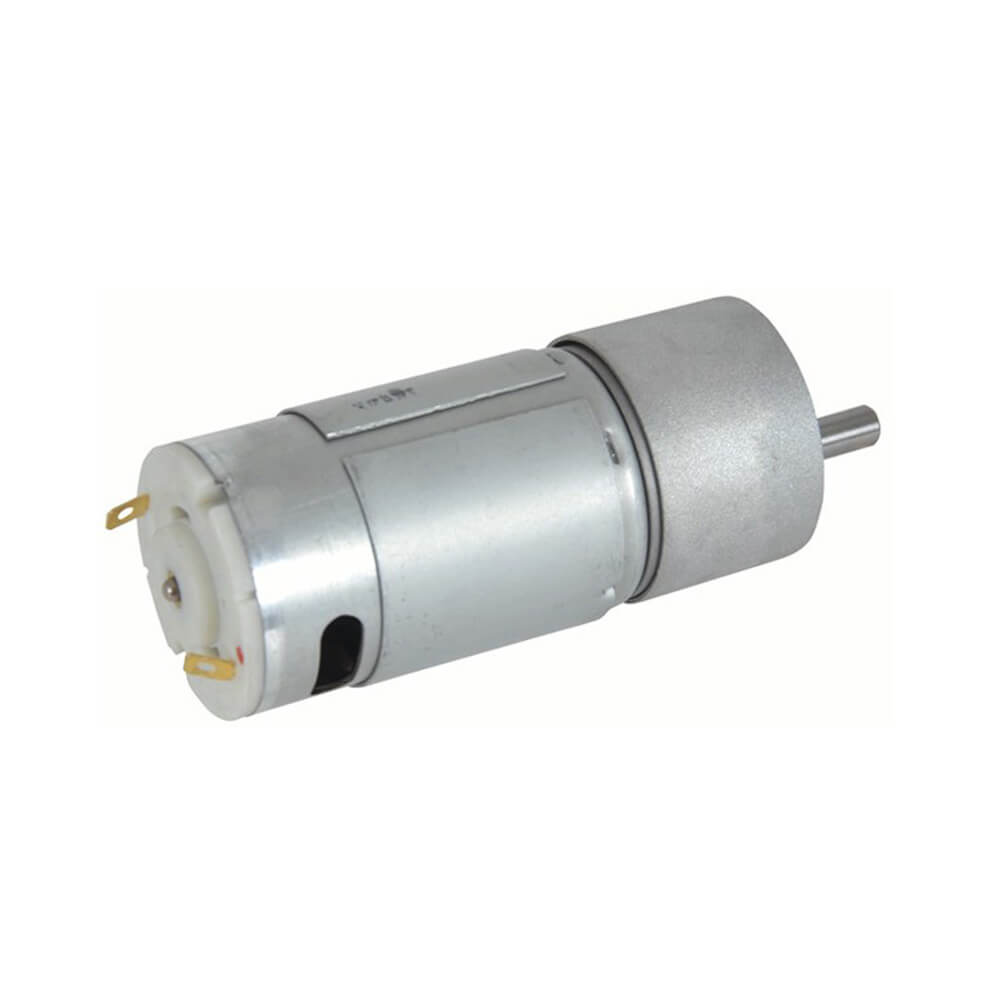

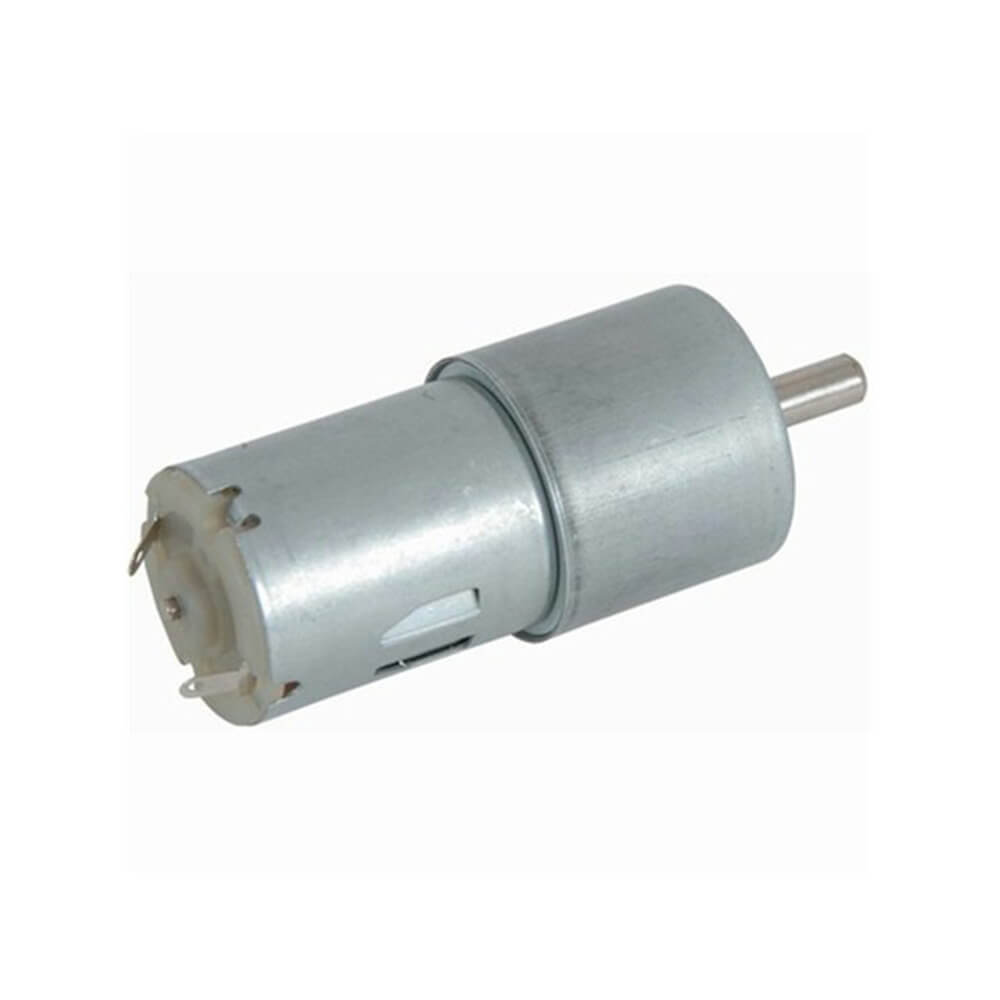

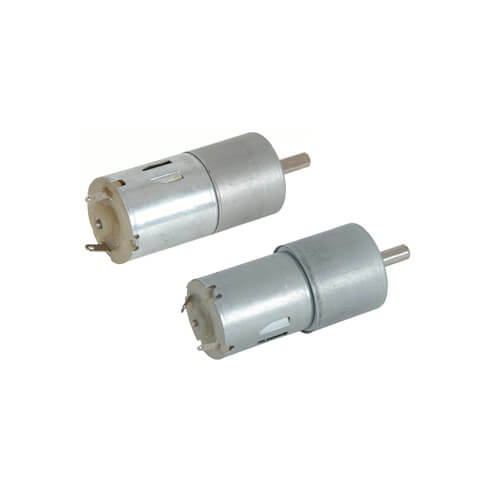

Reversible Gearhead Motor (12V)

TechBrandsSKU: 165382

DC Voltage : 6V, 12V
Item connection : Solder Tags
Type : Planetary/Orbital
Gear Ratio : 50:1
Pre-assembled Gear : true
Motor Type : Gearhead
Motor Nominal Voltage : 12V
No load current : 450mA
No load RPM : 160RPM
Full load current : 18A
Full load torque : 75kg.cm
Max efficiency : 44%
Max efficiency power : 16.3W
Max efficiency RPM : 134RPM
Maximum efficiency torque : 11.84kg.cm
Max. efficiency current : 3.2A
Shaft diameter : 6mm
Shaft length : 12mm

Option: 55RPM

Variant

Price:

$74.99

Stock:

In stock

Quantity:

Canada Post Announcement - The Canadian Union of Postal Workers (CUPW) has started a national strike. Canada Post’s operations are temporarily suspended as of 27 November 2024. While we are doing all we can to deliver your parcels, including changing our last mile delivery partner, please expect delays. While new orders from 27 November 2024 will bypass Canada Post, orders sent before this date and still not received could be stuck in limbo until the strike is resolved. For the latest information and service updates, visit Negotiation Page

Share this product

High power reversible DC motor with gearbox head for heavy duty applications. Suitable for larger mechatronics projects or as a replacement motor for simple machines. Capable of producing a massive 50kg/cm torque at 55RPM at load and upto 160RPM at No Load.

Product Specifications
