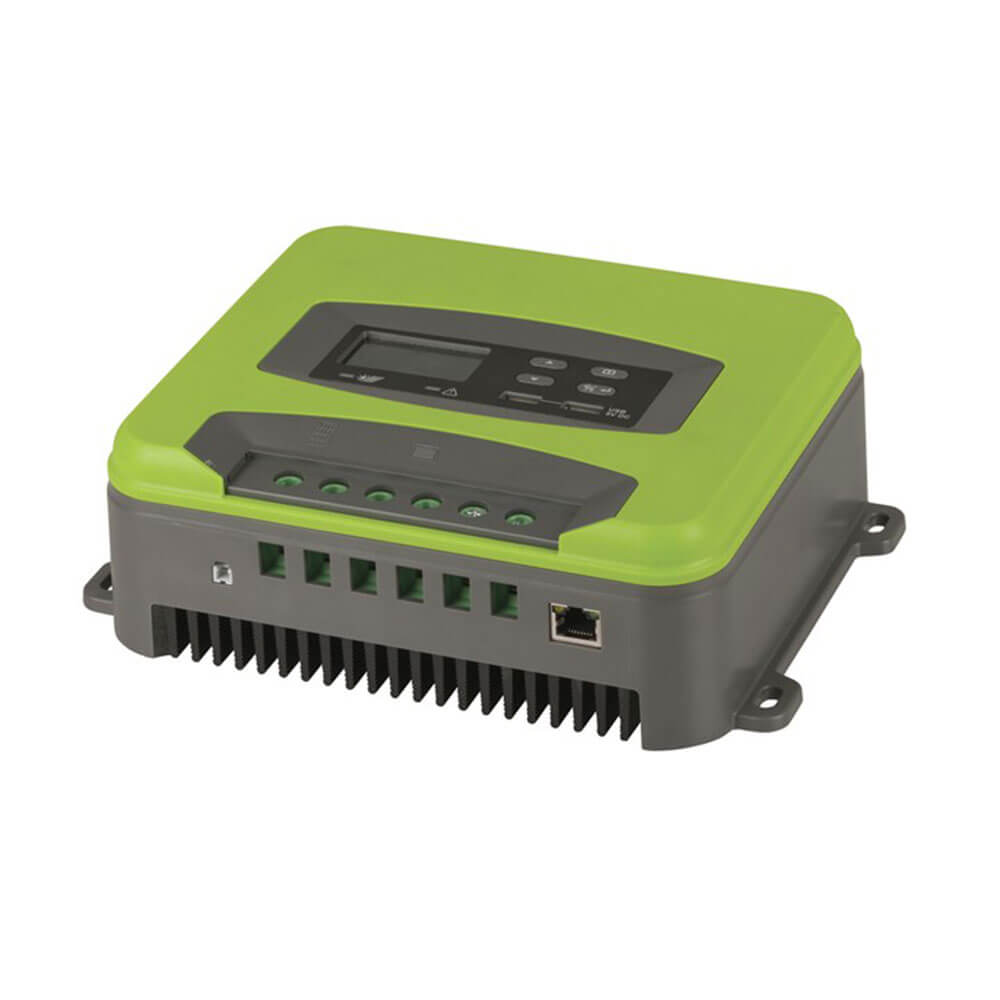

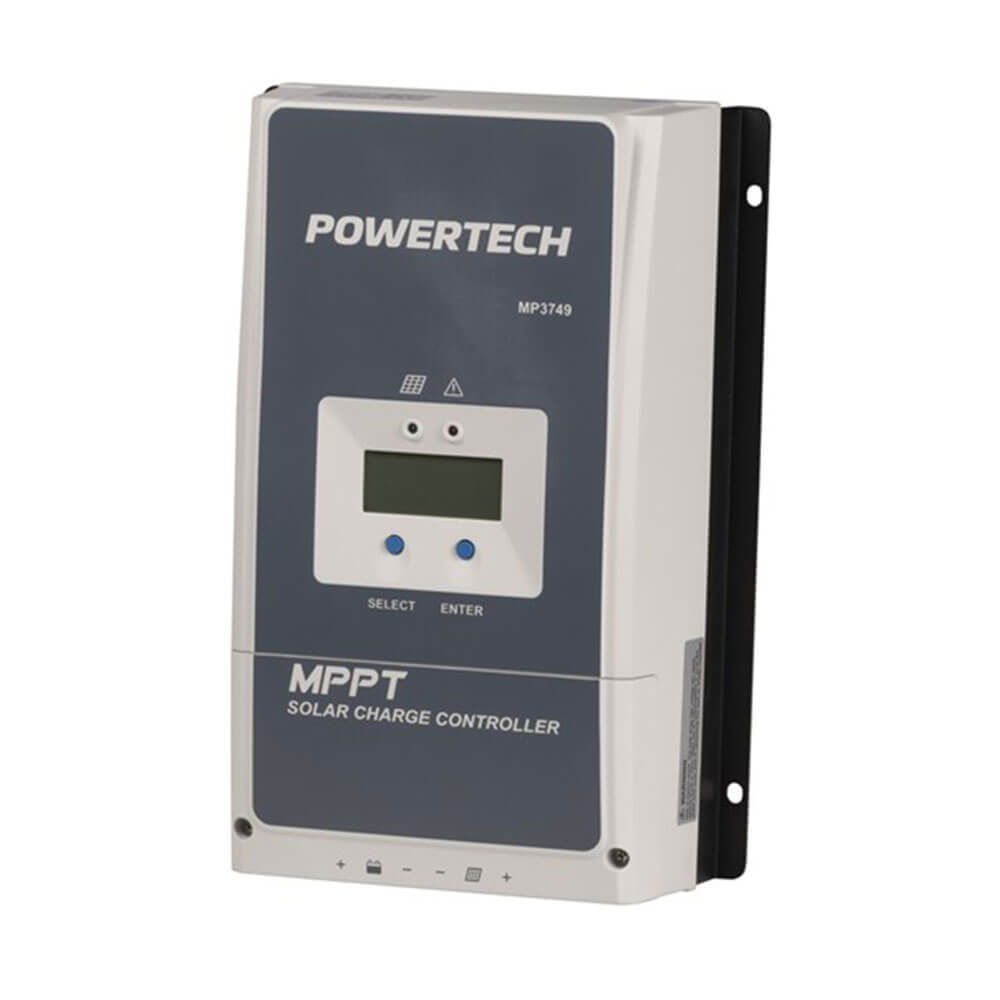

Powertech MPPT Solar Charge Controller (Lithium/SLA)

PowertechSKU: 126199

Advanced MPPT control technology
High tracking and conversion efficiency
Supports Sealed, Gel or flooded lead acid and Lithium batteries
3-stage intelligent charging
Multiple load work modes
Extensive electronic protection
Backlit LCD display
RS485 communication
Common negative grounding
Compatible Battery Bank Voltages 12 / 24VDC Selectable
Maximum Input Power 520W (12VDC System) / 260W (24VDC System)
Input Voltage 16 - 100VDC
Max Load Current 20A
Dimensions 221(H) x 155(W) x 52(D)mm, 940g

Option: 20A

Variant

Price:

$321.99

Stock:

In stock

Quantity:

Canada Post Announcement - The Canadian Union of Postal Workers (CUPW) has started a national strike. Canada Post’s operations are temporarily suspended as of 27 November 2024. While we are doing all we can to deliver your parcels, including changing our last mile delivery partner, please expect delays. While new orders from 27 November 2024 will bypass Canada Post, orders sent before this date and still not received could be stuck in limbo until the strike is resolved. For the latest information and service updates, visit Negotiation Page

Share this product

Uses Maximum Power Point Tracking (MPPT) for maximum efficiency and charge rate. Able to charge lead acid (sealed, gel or flooded) or lithium battery banks between 8V to 32V, and supports 12V solar arrays up to 260W or 24VDC arrays up to 520W. It features bulk, constant and float charge stages for rapid, efficient and safe battery charging, with feedback on charge status, current, voltages, etc. shown on the LCD screen. Built into a durable case for permanent installation with heavy duty screw terminals for cabling up to 10AWG.

Note: To use the Lithum feature of this Charge Controller you will need to Purchase MP3746 to program this controller with details from your battery's data sheet.
