Description

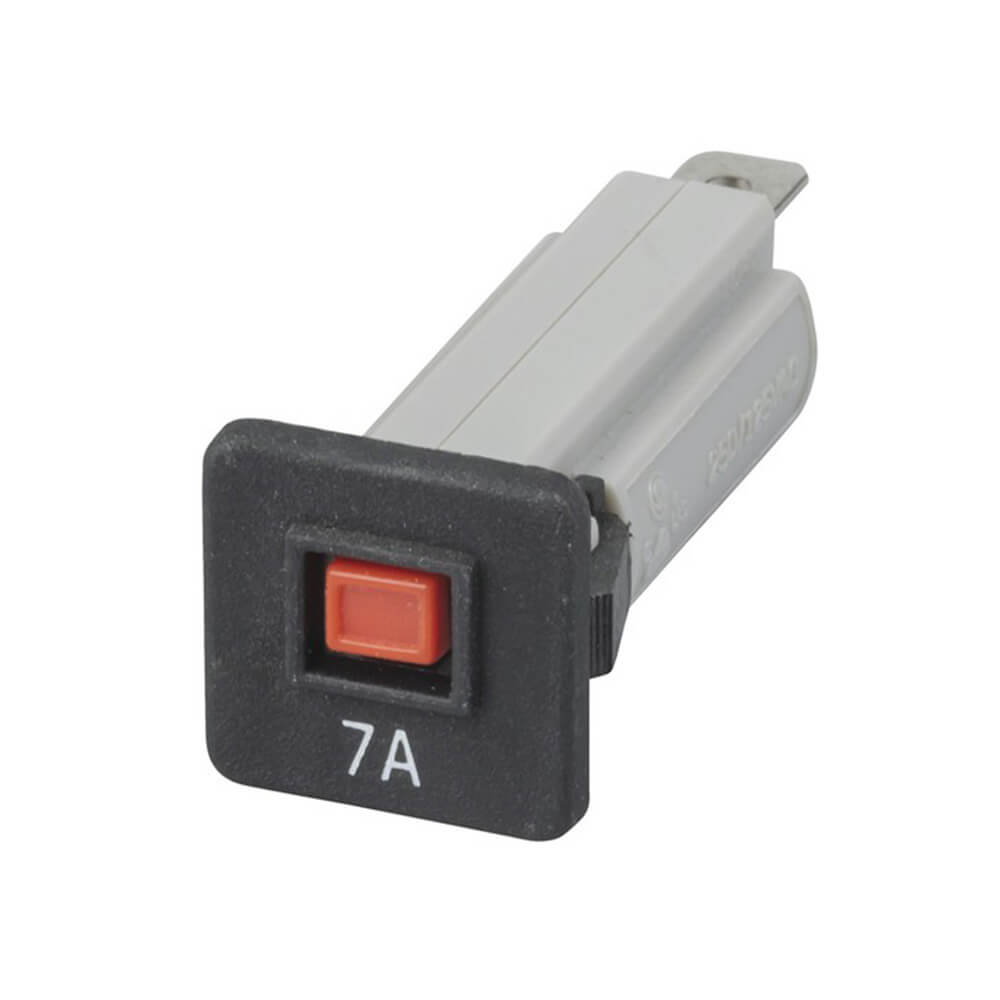

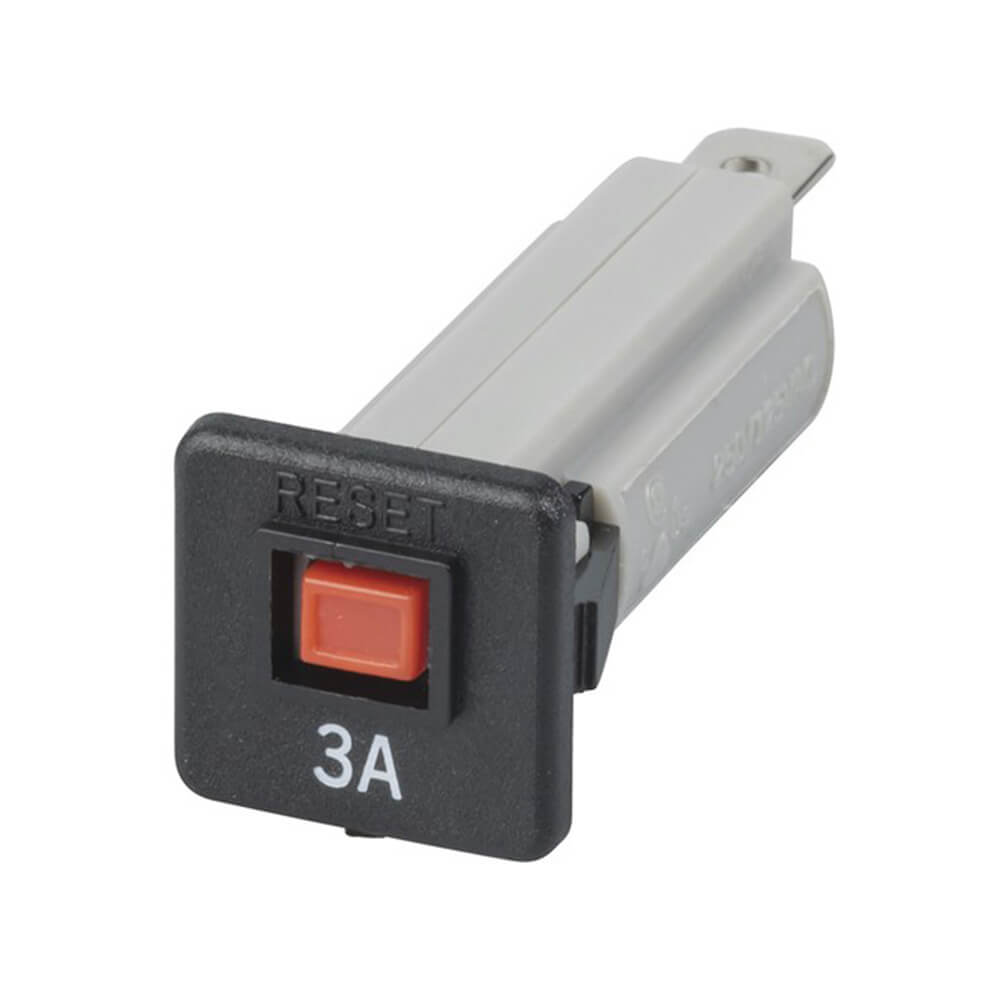

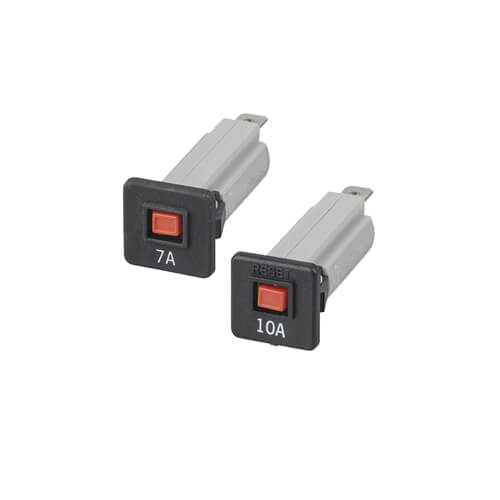

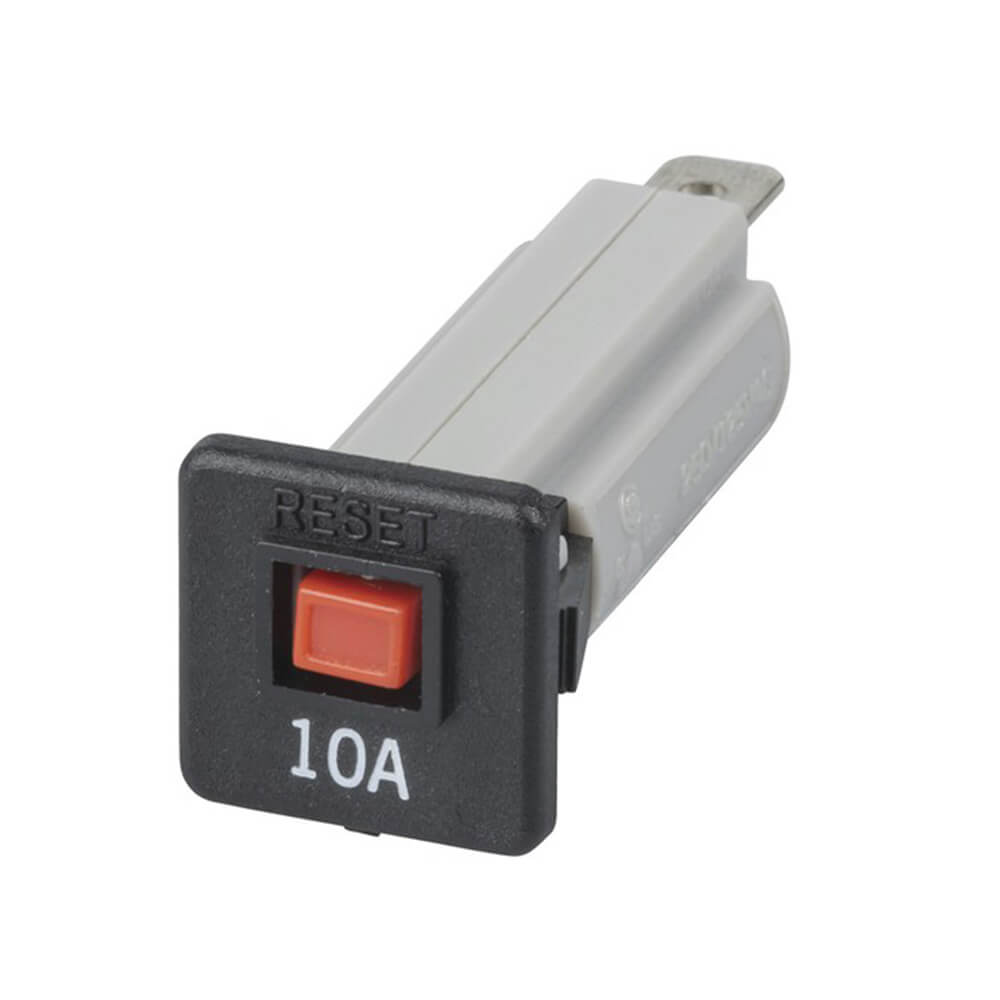

These attractive looking units feature a black 19mm square facade with a centrally mounted bright red `trip' button.
- When tripped, the red button extends.
- To reset simply push button back in (once fault has been cleared).
- Slow response time ideal for inductive/reactive loads.
Features:
Hold Current: 100% load indefinitely
Trip current:
...within 1 hour @ 135% load
...within 1 min @ 200% load
Contact Resistance: 0.16ohms
Product Specifications
- Circuit Breaker Type : Panel mount
- Circuit Breaker Current : 3A
- Circuit Breaker AC Voltage : 125V, 250V
- Circuit Breaker DC Voltage : 32V
- Circuit Breaker Resistance : 0.16Ω
- Circuit Breaker Di-electric Strength : 1500VAC 1 Minute
- Circuit Breaker Contact Endurance : >500 cycles @ 150% of contact rating
- Circuit Breaker Pole Count : 1 pole
| Length : 5 cm | Width : 2 cm |
| Height : 2 cm |
