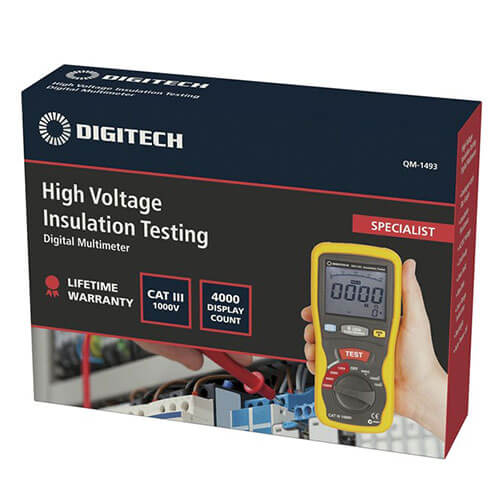

Insulation Digital Tester/Multimeter (CatIII 1000V)

Roll over image to zoom in Click on image to zoom

Insulation Digital Tester/Multimeter (CatIII 1000V)

LatestBuySKU: 52088

Insulation Resistance Ranges : 4.0Megaohm, 40.0Megaohm, 400.0Megaohm
Accuracy : +-(2%+10) to +-(5%+5) depending on scale. Refer to manual for full details.%
Test Voltage : 125.0V, 250.0V, 500.0V, 1000.0V
Test Current : 1.0mA
Resistance Ranges : 40.0Ohm, 400.0Ohm
Resistance Accuracy : +-(1.2%+3)
AC Voltage Ranges : 750.0V
AC Voltage Accuracy : +-(1.2%+10)
DC Voltage Ranges : 1000.0V
DC Voltage Accuracy : +-(0.8%+3)
Records Minimum : true
Records Maximum : true
Data Hold : true
Digits Displayed : 4.0 digit
Display Type : LCD
Display Backlight : LED Backlit
Bargraph : true
Safety Rating Cat : Cat III
Safety Rating Max Volt : 1000.0V
Count / Maximum Reading : 4000.0 count
Autorange : true
Length : 200.0mm
Width : 92.0mm
Depth : 50.0mm
Size / Shape : AA
Battery quantity : 6.0pc
Batteries included : true
Batteries can be replaced by user : true
Compartment location : Back
Probe rating voltage : 1000.0V
Probe safety rating : Cat III
Meter Input Impedence : 0.0Ohm
Input Protection Fuse : 15.0mA
Carry Case Included : true

Price:

$471.99

Stock:

In stock

Quantity:

Canada Post Announcement - The Canadian Union of Postal Workers (CUPW) has started a national strike. Canada Post’s operations are temporarily suspended as of 27 November 2024. While we are doing all we can to deliver your parcels, including changing our last mile delivery partner, please expect delays. While new orders from 27 November 2024 will bypass Canada Post, orders sent before this date and still not received could be stuck in limbo until the strike is resolved. For the latest information and service updates, visit Negotiation Page

Share this product

Specifications

Category: Cat IV 600V / Cat III 1000V
Display: 4000 count
Basic accuracy: 1%
Insulation test: 4Gohms @ 125 - 1000V
Ave/RMS: Ave
Analogue/digital display
Data hold
Max/min
Moulded case
Backlit LCD
Auto power-off

Commonly known as a megger and suitable for high voltage insulation testing up to 4 gigaohms at up to 1000V. It also has AC/DC voltage and low resistance multimeter functions. Moulded storage case and holster included.

Product Specifications

Insulation Resistance Ranges : 4.0Megaohm, 40.0Megaohm, 400.0Megaohm
Accuracy : +-(2%+10) to +-(5%+5) depending on scale. Refer to manual for full details.%
Test Voltage : 125.0V, 250.0V, 500.0V, 1000.0V
Test Current : 1.0mA
Resistance Ranges : 40.0Ohm, 400.0Ohm
Resistance Accuracy : +-(1.2%+3)
AC Voltage Ranges : 750.0V
AC Voltage Accuracy : +-(1.2%+10)
DC Voltage Ranges : 1000.0V
DC Voltage Accuracy : +-(0.8%+3)
Records Minimum : true
Records Maximum : true
Data Hold : true
Digits Displayed : 4.0 digit
Display Type : LCD
Display Backlight : LED Backlit
Bargraph : true
Safety Rating Cat : Cat III
Safety Rating Max Volt : 1000.0V
Count / Maximum Reading : 4000.0 count
Autorange : true
Length : 200.0mm
Width : 92.0mm
Depth : 50.0mm
Size / Shape : AA
Battery quantity : 6.0pc
Batteries included : true
Batteries can be replaced by user : true
Compartment location : Back
Probe rating voltage : 1000.0V
Probe safety rating : Cat III
Meter Input Impedence : 0.0Ohm
Input Protection Fuse : 15.0mA
Carry Case Included : true
