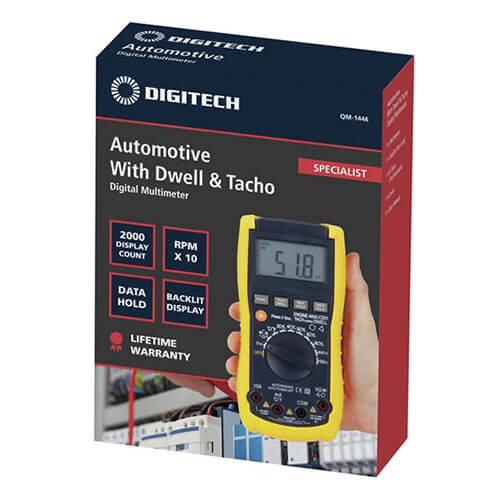

Automotive DMM with Dwell and Tacho Engine Analizer

Roll over image to zoom in Click on image to zoom

Automotive DMM with Dwell and Tacho Engine Analizer

LatestBuySKU: 52086

Continuity buzzer : true
AC Current Ranges : 20.0mA, 200.0mA, 2.0A, 10.0A
AC Current Accuracy : 1.8%
DC Current Ranges : 20.0mA, 200.0mA, 2.0A, 10.0A
DC Current Accuracy : 1.5%
Resistance Ranges : 200.0Ohm, 2.0Kiloohm, 20.0Kiloohm, 200.0Kiloohm, 2.0Megaohm, 20.0Megaohm
Resistance Accuracy : 1.0%
Outdoor / Exterior Scale : -20.000000 Degrees C, 1000.0 Degrees C
Outdoor / Exterior Scale : -4.000000 Degrees F, 1832.0 Degrees F
AC Voltage Ranges : 2.0V, 20.0V, 200.0V, 700.0V
AC Voltage Accuracy : 1.0%
DC Voltage Ranges : 200.0mV, 2.0V, 20.0V, 200.0V, 1000.0V
DC Voltage Accuracy : 0.8%
Records Maximum : true
Data Hold : true
Display Type : LCD
Display Backlight : LED Backlit
Safety Rating Cat : Cat III
Safety Rating Max Volt : 600.0V
Count / Maximum Reading : 2000.0 count
Autorange : true
Measures dwell : true
Length : 180.0mm
Width : 87.0mm
Depth : 50.0mm
Size / Shape : AAA
Battery quantity : 2.0pc
Measurement Range Count : 2000.0 count
Meter Input Impedence : 10.0Megaohm
Measures diode : true

Price:

$95.99

Stock:

In stock

Quantity:

Canada Post Announcement - The Canadian Union of Postal Workers (CUPW) has started a national strike. Canada Post’s operations are temporarily suspended as of 27 November 2024. While we are doing all we can to deliver your parcels, including changing our last mile delivery partner, please expect delays. While new orders from 27 November 2024 will bypass Canada Post, orders sent before this date and still not received could be stuck in limbo until the strike is resolved. For the latest information and service updates, visit Negotiation Page

Share this product

Perfect for the workshop as an an engine analyser as well as basic DMM. Full dwell angle measurement and tacho, with max / data hold and bright backlit LCD.

Features:

Dwell angle
RPM x10
Data hold
Max hold
Continuity & diode test
Backlight
Auto power off
Display: 2000 count
Measurement Category: Cat II 1000V / Cat III 600V
Diode Test
Continuity Test

Product Specifications

Continuity buzzer : true
AC Current Ranges : 20.0mA, 200.0mA, 2.0A, 10.0A
AC Current Accuracy : 1.8%
DC Current Ranges : 20.0mA, 200.0mA, 2.0A, 10.0A
DC Current Accuracy : 1.5%
Resistance Ranges : 200.0Ohm, 2.0Kiloohm, 20.0Kiloohm, 200.0Kiloohm, 2.0Megaohm, 20.0Megaohm
Resistance Accuracy : 1.0%
Outdoor / Exterior Scale : -20.000000 Degrees C, 1000.0 Degrees C
Outdoor / Exterior Scale : -4.000000 Degrees F, 1832.0 Degrees F
AC Voltage Ranges : 2.0V, 20.0V, 200.0V, 700.0V
AC Voltage Accuracy : 1.0%
DC Voltage Ranges : 200.0mV, 2.0V, 20.0V, 200.0V, 1000.0V
DC Voltage Accuracy : 0.8%
Records Maximum : true
Data Hold : true
Display Type : LCD
Display Backlight : LED Backlit
Safety Rating Cat : Cat III
Safety Rating Max Volt : 600.0V
Count / Maximum Reading : 2000.0 count
Autorange : true
Measures dwell : true
Length : 180.0mm
Width : 87.0mm
Depth : 50.0mm
Size / Shape : AAA
Battery quantity : 2.0pc
Measurement Range Count : 2000.0 count
Meter Input Impedence : 10.0Megaohm
Measures diode : true
