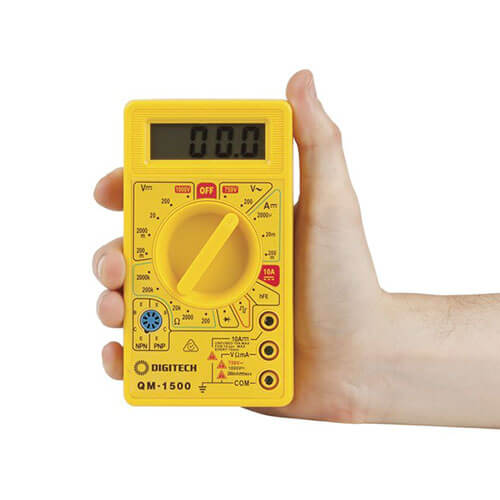

Compact Handy Digital Multimeter (10A DMM)

Roll over image to zoom in Click on image to zoom

Compact Handy Digital Multimeter (10A DMM)

LatestBuySKU: 52090

DC Current Ranges : 200.0 Microampere, 2.0mA, 20.0mA, 200.0A, 10.0A
DC Current Accuracy : 20mA +-1 +-2 Digits, 200mA +-1.2 +-2 Digits, 10A +-2 +-2 Digits
Resistance Ranges : 200.0Ohm, 2.0Kiloohm, 20.0Kiloohm, 200.0Kiloohm, 2.0Megaohm
Resistance Accuracy : 200Kiloohm +-0.8 +-2 Digits%, 200Kiloohm +-1 +-2 Digits%
AC Voltage Ranges : 200.0V, 750.0V
AC Voltage Accuracy : +-1.2 +-10 Digits%
DC Voltage Ranges : 200.0mV, 2.0V, 20.0V, 200.0V, 1000.0V
DC Voltage Accuracy : 200V +-0.5 +-2 Digits, 200V +-0.8 +-2 Digits
Digits Displayed : 3.5 digit
Display Type : LCD
Display Height : 30.0mm
Display Width : 100.0mm
Display Backlight : Not Backlit
Bargraph : false
Safety Rating Cat : Cat II
Safety Rating Max Volt : 500.0V
Count / Maximum Reading : 1999.0 count
True RMS : false
Autorange : false
Width : 68.0mm
Height : 125.0mm
Depth : 23.0mm
Weight : 150.0g
Size / Shape : 9V
Battery quantity : 1.0pc
Batteries included : true
Batteries can be replaced by user : true
Compartment location : Internal / In-built
How is battery compartment kept closed : Clip and Screw
Probe Type : Basic Meter Probes
Connection to meter : Shrouded 4mm Banana Plug
Includes finger guard : true
Measurement Range Count : 19.0 count
Meter Input Impedence : 1.0Megaohm
Input Protection Fuse : 500.0mA
Measures diode : true
Measures transistor : true
Led Indicator Display : false
Inline Sensor : false
Special Features : Pocket Sized
Casing : Plastic

Price:

$24.99

Stock:

In stock

Quantity:

Canada Post Announcement - The Canadian Union of Postal Workers (CUPW) has started a national strike. Canada Post’s operations are temporarily suspended as of 27 November 2024. While we are doing all we can to deliver your parcels, including changing our last mile delivery partner, please expect delays. While new orders from 27 November 2024 will bypass Canada Post, orders sent before this date and still not received could be stuck in limbo until the strike is resolved. For the latest information and service updates, visit Negotiation Page

Share this product

This is the ideal first multimeter or a handy spare meter for your car or toolbox. Measures essential test ranges and includes plug-in 4mm probes plus transistor tester.

Ideal First Meter
Compact Size
Overload Protected

Product Specifications

DC Current Ranges : 200.0 Microampere, 2.0mA, 20.0mA, 200.0A, 10.0A
DC Current Accuracy : 20mA +-1 +-2 Digits, 200mA +-1.2 +-2 Digits, 10A +-2 +-2 Digits
Resistance Ranges : 200.0Ohm, 2.0Kiloohm, 20.0Kiloohm, 200.0Kiloohm, 2.0Megaohm
Resistance Accuracy : 200Kiloohm +-0.8 +-2 Digits%, 200Kiloohm +-1 +-2 Digits%
AC Voltage Ranges : 200.0V, 750.0V
AC Voltage Accuracy : +-1.2 +-10 Digits%
DC Voltage Ranges : 200.0mV, 2.0V, 20.0V, 200.0V, 1000.0V
DC Voltage Accuracy : 200V +-0.5 +-2 Digits, 200V +-0.8 +-2 Digits
Digits Displayed : 3.5 digit
Display Type : LCD
Display Height : 30.0mm
Display Width : 100.0mm
Display Backlight : Not Backlit
Bargraph : false
Safety Rating Cat : Cat II
Safety Rating Max Volt : 500.0V
Count / Maximum Reading : 1999.0 count
True RMS : false
Autorange : false
Width : 68.0mm
Height : 125.0mm
Depth : 23.0mm
Weight : 150.0g
Size / Shape : 9V
Battery quantity : 1.0pc
Batteries included : true
Batteries can be replaced by user : true
Compartment location : Internal / In-built
How is battery compartment kept closed : Clip and Screw
Probe Type : Basic Meter Probes
Connection to meter : Shrouded 4mm Banana Plug
Includes finger guard : true
Measurement Range Count : 19.0 count
Meter Input Impedence : 1.0Megaohm
Input Protection Fuse : 500.0mA
Measures diode : true
Measures transistor : true
Led Indicator Display : false
Inline Sensor : false
Special Features : Pocket Sized
Casing : Plastic
