Description
There is a negative common bus to the switches which when connected, enables the actuator to glow red when 'on'.
Specifications:
DC current rating : 35A
DC Voltage : 12V
Nominal Voltage : 12V
Type : Incandescent
Illumination Colour : Red
Illumination Position : Top
Width : 100mm
Height : 110mm
Depth : 45mm
Mounting Method : Panel
Attachment / Securing Method : Screw Down
Square Mount Hole Width : 76mm
Square Mount Hole Height : 97mm
Packaged Volume : 0.22l
Packaged Weight : 0.17kg
Packaged Length : 3.8cm
Packaged Width : 11.6cm
Packaged Height : 5
Product Specifications

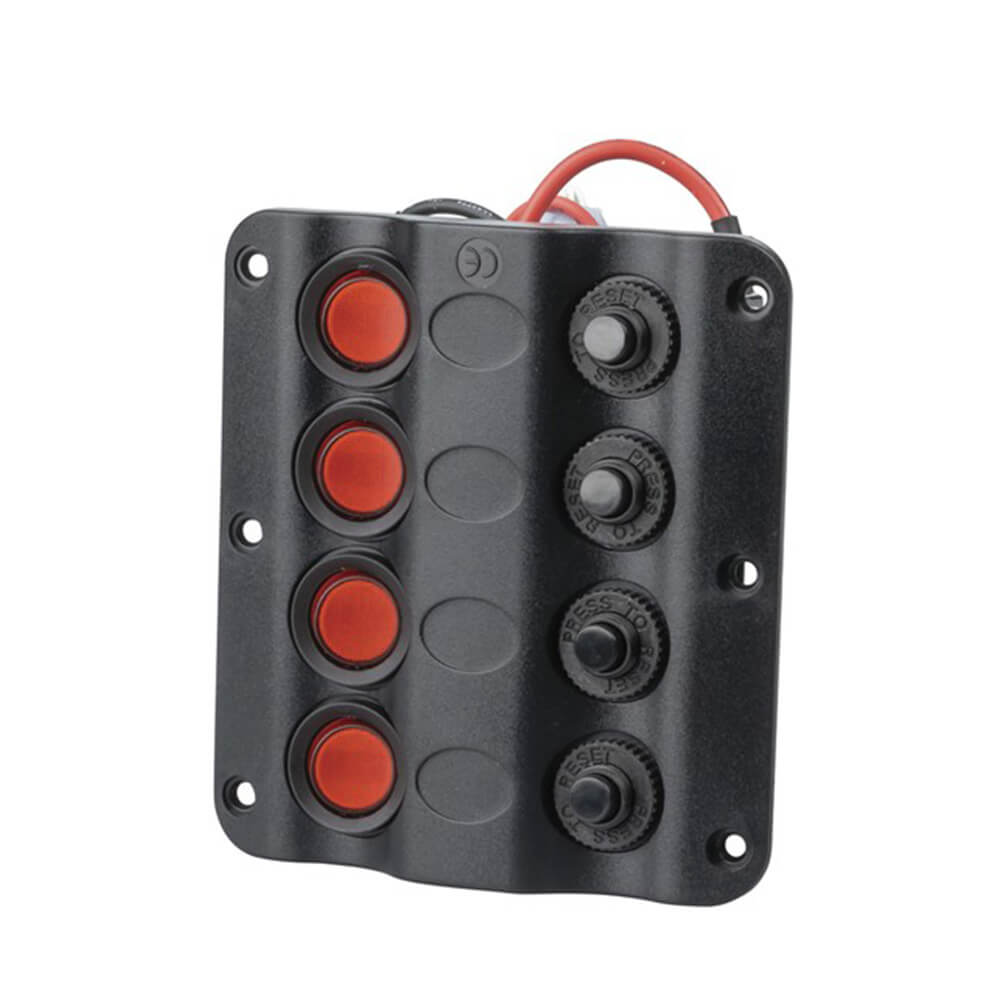

- This panel meausres 100 x 110 overall and can be mounted either vertically or horizontally.
- The circuit breakers are connected in common + by a soldered strip which accepts a 1/4 QC connector.
- They are then soldered to a 10A rated illuminated rocker switch.
- The rocker switches have 4.8 QC tabs and are single pole type.
- The circuit breakers are rated thus: 10A, 8A, 6A and 4A which is quite handy really.
| Length : 3.8 cm | Width : 11.6 cm |
| Height : 5.1 cm |
