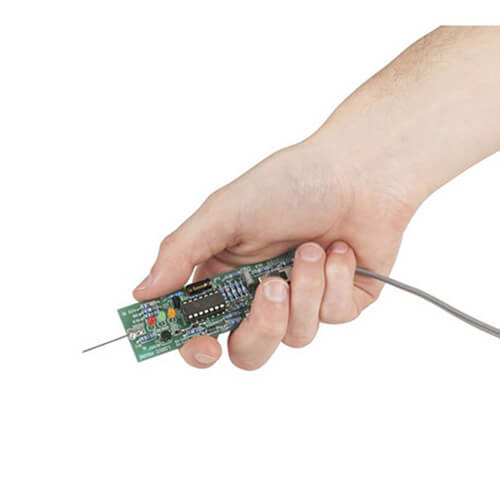

Logic Probe Kit Diagnostics Kit for Arduino and Raspberry Pi

LatestBuySKU: 51436

Kit Form : Quick Kit (circuit module only)
Kit Group : General Projects
Difficulty : Detailed
Special Skills Required : SMD Soldering
Tools required : Soldering Iron

Price:

$28.99

Stock:

In stock

Quantity:

Canada Post Announcement - The Canadian Union of Postal Workers (CUPW) has started a national strike. Canada Post’s operations are temporarily suspended as of 27 November 2024. While we are doing all we can to deliver your parcels, including changing our last mile delivery partner, please expect delays. While new orders from 27 November 2024 will bypass Canada Post, orders sent before this date and still not received could be stuck in limbo until the strike is resolved. For the latest information and service updates, visit Negotiation Page

Share this product

As described in the October 2017 DIYODE magazine.

This logic probe will help you diagnose and troubleshoot your 3.3V or 5V circuits, including Arduino and Raspberry Pi projects. It indicates a logic low or logic high state on the green and red LEDs, and shows a shift between states on the orange LED. There is also a switch for TTL or CMOS circuits. Kit supplied with double-sided screen printed PCB and specified parts. We've even thrown in the paperclip for the probe tip. You'll need to 3D print your own case though, for which you can download the print file from the DIYODE website.

Raspberry Pi is a trademark of the Raspberry Pi Foundation

Product Specifications
