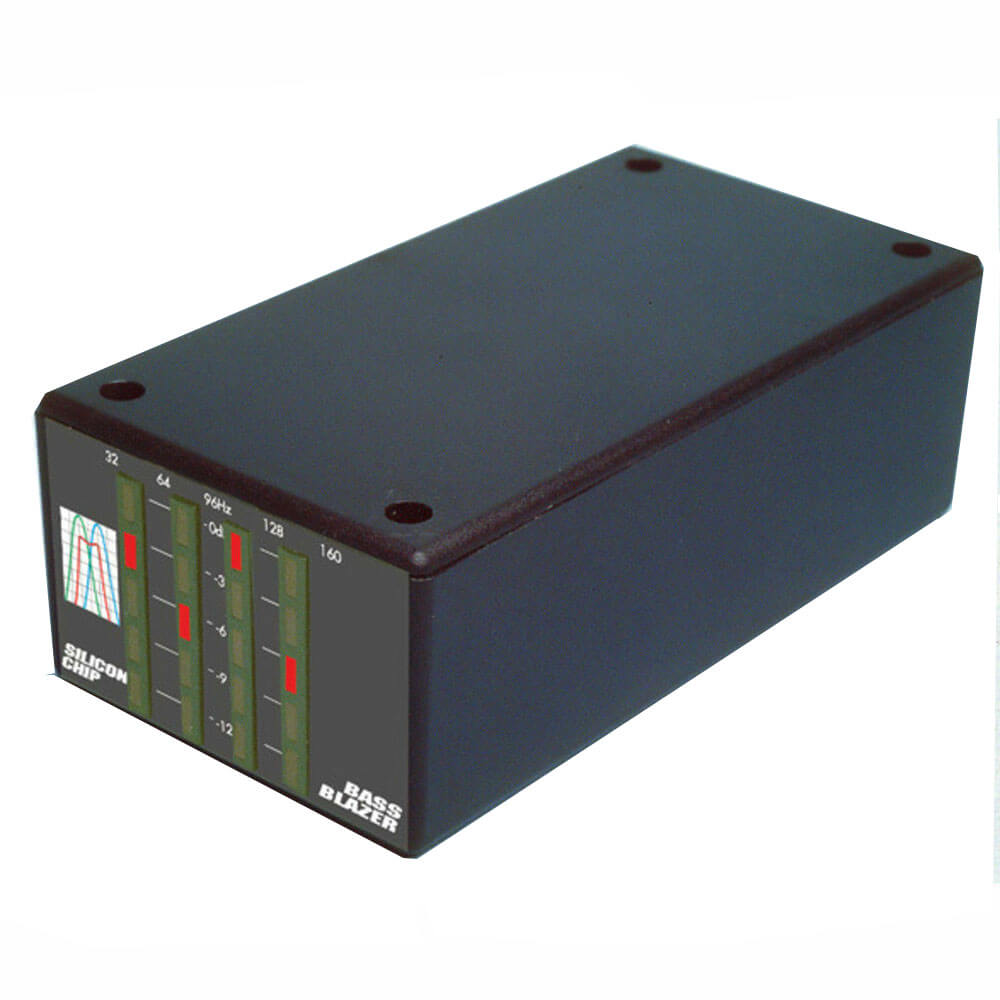

Bass Blazer Bar Graph Display Kit

On back order

LatestBuySKU: 51381

The unit covers 2 1/2 octaves in 4 separate bands 32-64Hz, 64-96Hz, 96-128Hz, and 128-160Hz.
The bar graphs cover a range of 15db in 5 x 3db steps.
The kit is supplied with a silk screened case, PCBs and all electronic components.

Price:

$36.99

Stock:

Sold out

Quantity:

Canada Post Announcement - The Canadian Union of Postal Workers (CUPW) has started a national strike. Canada Post’s operations are temporarily suspended as of 27 November 2024. While we are doing all we can to deliver your parcels, including changing our last mile delivery partner, please expect delays. While new orders from 27 November 2024 will bypass Canada Post, orders sent before this date and still not received could be stuck in limbo until the strike is resolved. For the latest information and service updates, visit Negotiation Page

Share this product

Ref Silicon Chip Feb 2001 If you're a bass fiend you'll love this little bass frequency display. The kit operates from 12VDC so it will be equally at home in either in your car or monitoring your home theatre/Hi-Fi system. This kit uses four red vertical LED bar graphs to indicate the level of bass output from your speakers so that you can set your bass signals properly.

Product Specifications

The unit covers 2 1/2 octaves in 4 separate bands 32-64Hz, 64-96Hz, 96-128Hz, and 128-160Hz.
The bar graphs cover a range of 15db in 5 x 3db steps.
The kit is supplied with a silk screened case, PCBs and all electronic components.
