Description

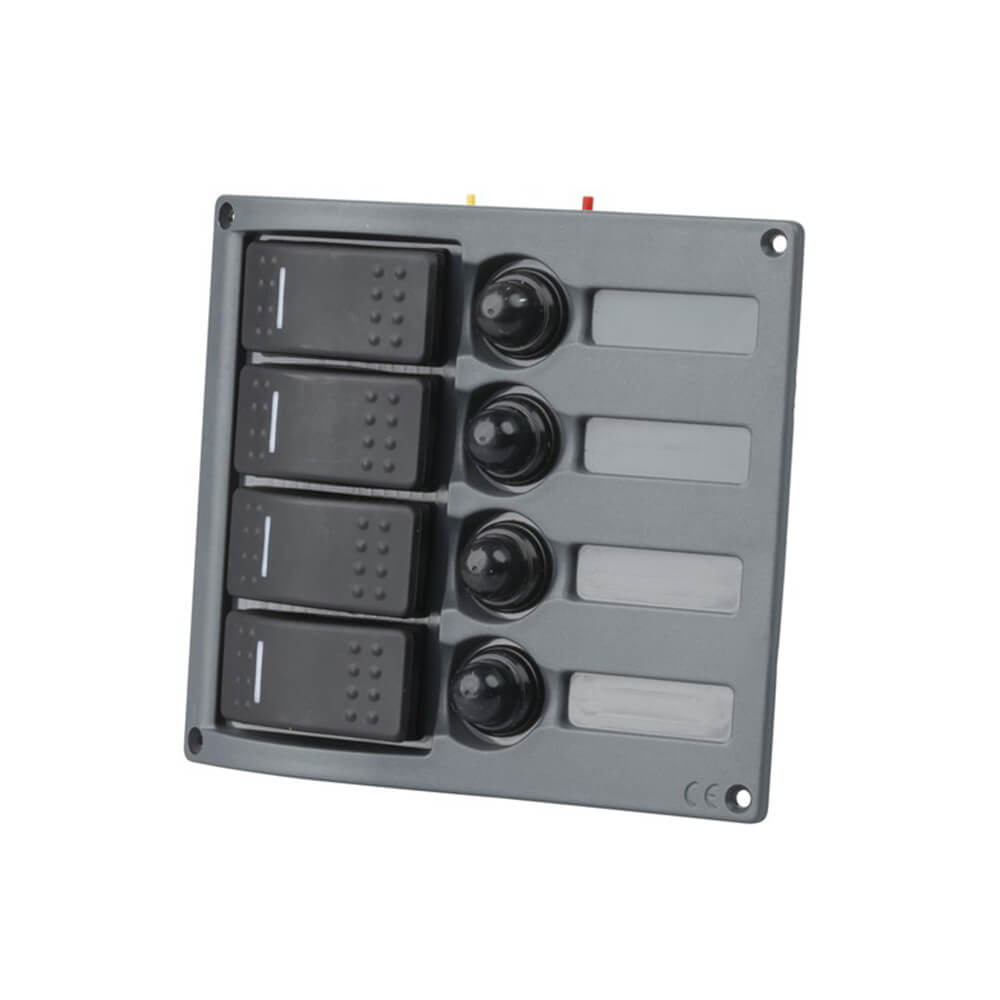

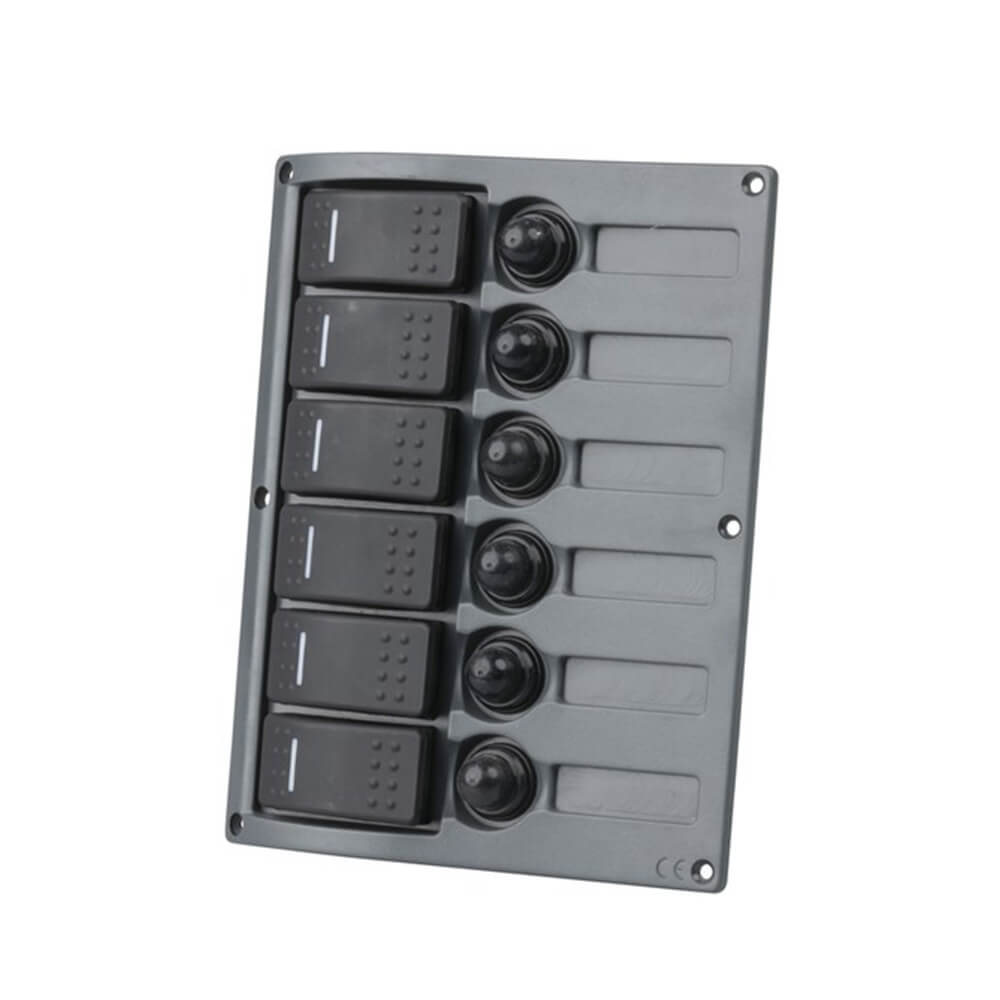

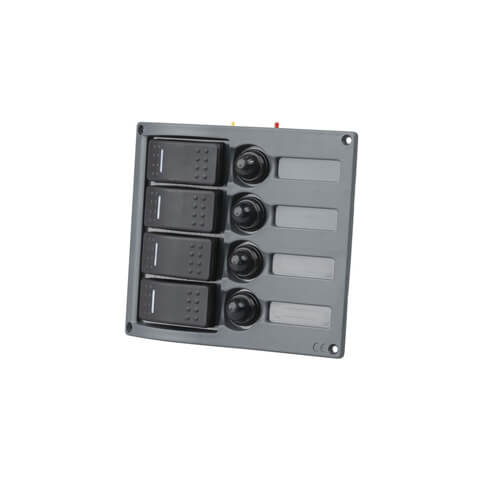

These units feature the attractive tactile rocker switches that are common on luxury Australian and foreign made motor cruisers. They are pre-wired as much as possible, with wiring connections made via standard spade terminals for ease. The 4 way panel measures 120H x 130W and the 6 way 130W x 170H. Both require about 80mm of space behind the mounting bulkhead. The 4 way has 6,10,15 & 20A rated circuit breakers and the 6 way has 6,6,10,10,15 & 20A breakers, and the switches feature LED illumination to let you know which circuit is active. Moulded from ABS plastic, black in colour.
Product Specifications
- DC Voltage : 12V, 24V
- IP Rating : IP66
- IP Rating certificate : true
- Length : 120mm
- Width : 130mm
- Switch Type : Rocker
- Throws / Positions : 1pos
- Switch Connection : Spade Terminals
- Switch Colour Coded : Black
- Mechanism Material : ABS Plastic (Acrylonitrile Butadiene Styrene)
- Number of Switches : 4pc
- Individual Circuit Breakers : 6A
Length : 22.1 cm | Width : 16.9 cm |
Height : 11.5 cm |
