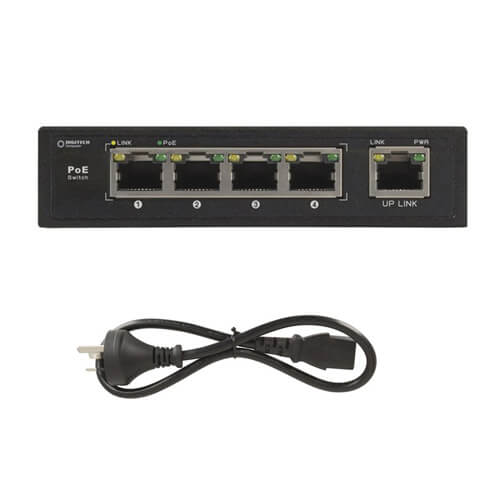

Power Over Ethernet (PoE) simplifies installation for IP cameras, telephones, routers, and other networking equipment. It reduces the need for mains power at each IP camera location, for instance, powering them from a central supply. It has 4 PoE ports and one uplink port with data and power transmission for distances up to 100m.
Product Specifications
- Ports: 4 x PoE (RJ45)
- 1 x Uplink (RJ45)
- Power Output: 30W Per Port (Max)
- 15.4W Per Port (Across 4 Ports)
- 65W (Total)
- PoE Standards: IEEE 802.3at, IEEE 802.3af, IEEE 802.3x,
- IEEE 802.3u, IEEE 802.3i
- Network Speed: 10/100Mbps
- Width : 118.0mm
- Height : 27.0mm
- Depth : 85.0mm
- DC Voltage : 52.0V
- DC Current Draw : 1.25A
Length : 25 cm |
Width : 20.5 cm |
Height : 4.5 cm |
