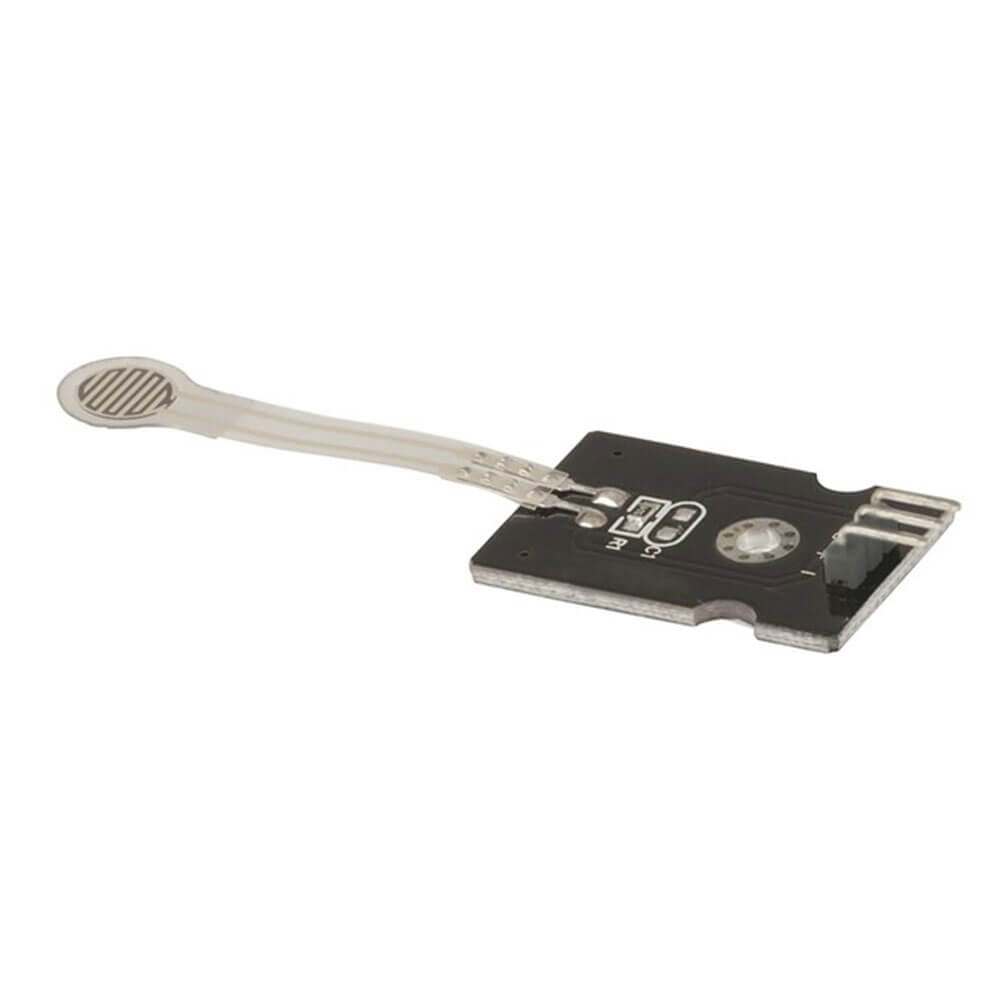

Duinotech Thin Film Pressure Sensor

DuinotechSKU: 96544

Flexible nano sensor
Waterproof
Pressure sensitive
Range: 0-10kg*
Thickness: <0.25mm
Response Point: <20g
Repeatability: <5.8% (50? Load)
Accuracy: 2.5% (85% range interval)
Durability: >100,000 Times
Response Time: <1ms
Recovery Time: <15ms
* Capable of measuring gross weight up to 10kg, but most accurate results are obtained up to 0.5kg.

Price:

$19.99

Stock:

In stock

Quantity:

Canada Post Announcement - The Canadian Union of Postal Workers (CUPW) has started a national strike. Canada Post’s operations are temporarily suspended as of 27 November 2024. While we are doing all we can to deliver your parcels, including changing our last mile delivery partner, please expect delays. While new orders from 27 November 2024 will bypass Canada Post, orders sent before this date and still not received could be stuck in limbo until the strike is resolved. For the latest information and service updates, visit Negotiation Page

Share this product

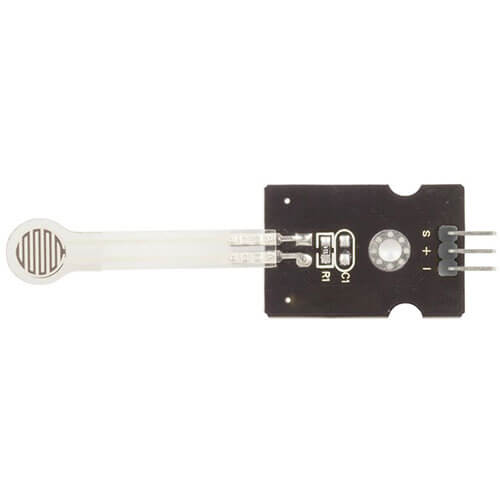

A highly sensitive waterproof sensor to detect pressure. The 5mm round thin sensor is mounted at the end of a 40mm long flexible lead that connects to the main board. Pressure up to 10kg on the sensor sends the change in resistance to your favourite microcontroller. Powered from either 3.3V or 5V.

Product Specifications

Flexible nano sensor
Waterproof
Pressure sensitive
Range: 0-10kg*
Thickness: <0.25mm
Response Point: <20g
Repeatability: <5.8% (50? Load)
Accuracy: 2.5% (85% range interval)
Durability: >100,000 Times
Response Time: <1ms
Recovery Time: <15ms
* Capable of measuring gross weight up to 10kg, but most accurate results are obtained up to 0.5kg.
