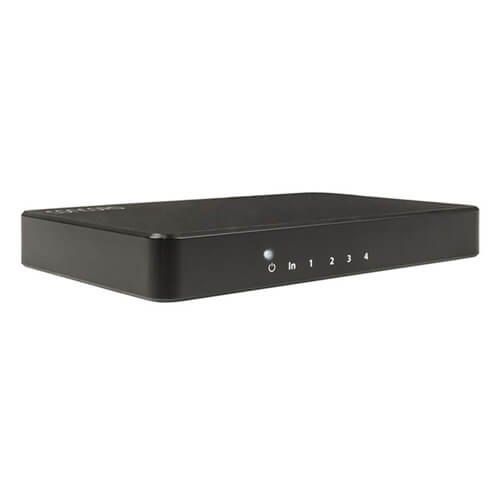

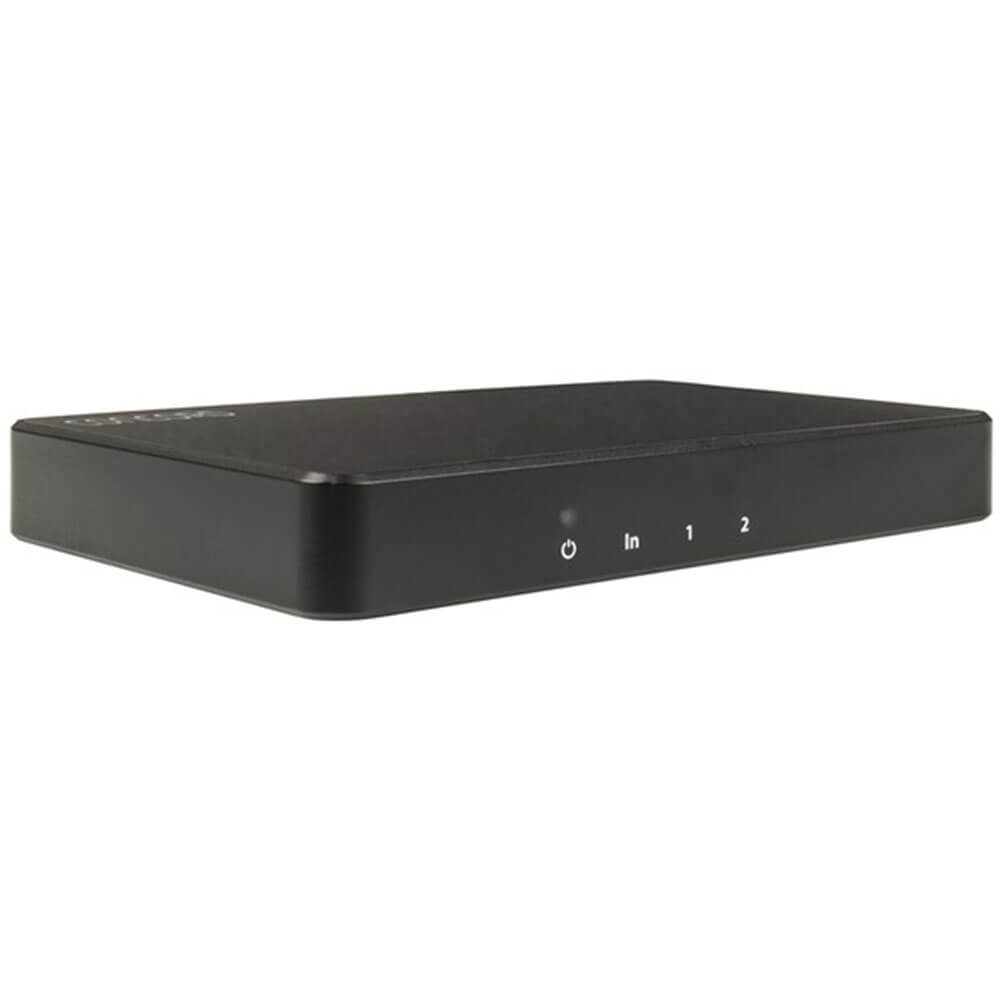

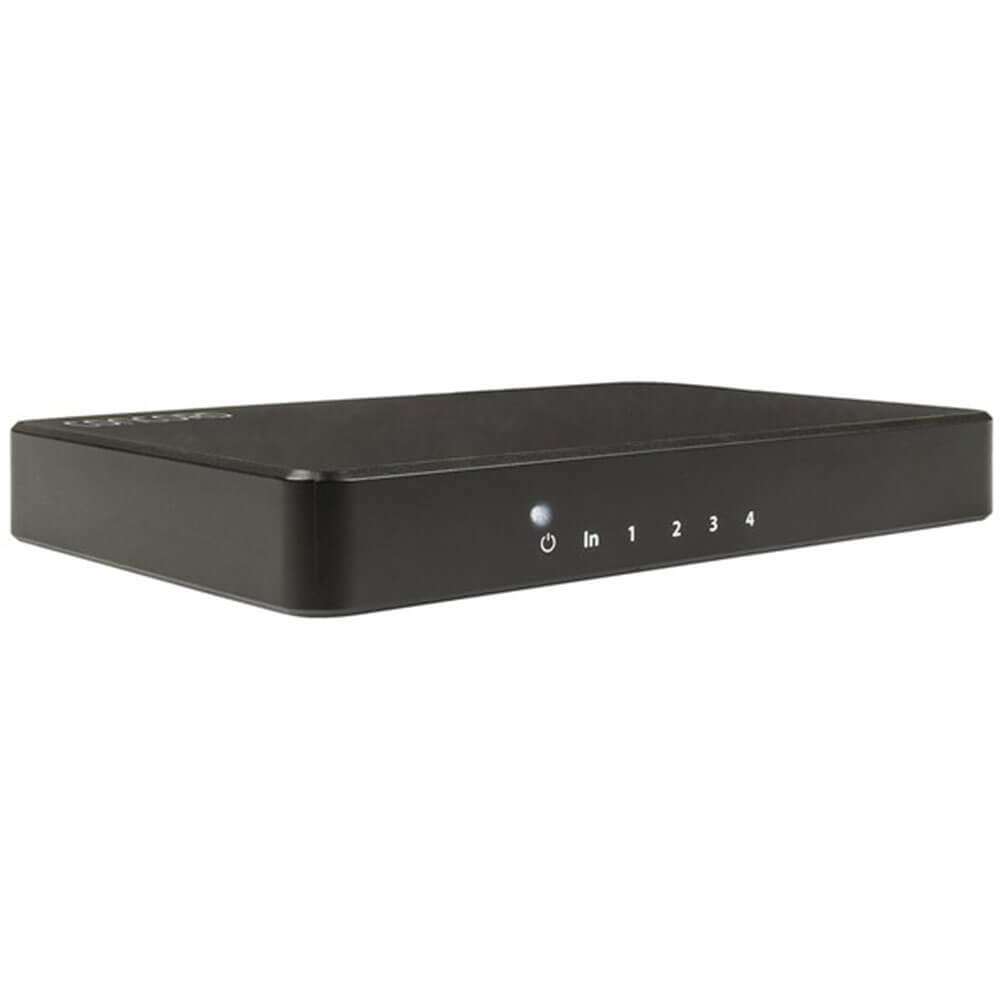

Concord 4K HDR HDMI 2.0b Splitter

On back order

ConcordSKU: 53180

Digital Audio Format : LPCM, Dolby Digital/Plus/Ex, DTS-HD Master Audio 5.1, Dolby TrueHD, DTS-HD, Dolby Atmos, DTS-X
Width : 100.0mm
Height : 16.0mm
Depth : 56.0mm
PSU Powers : Main Product
DC Plugpack Voltage : 5.0V
DC Current Draw : 200.0mA
Suitable PSU Included : true
Supported Display Resolution : 4K UHD (3840 x 2160)
Resolution Frequency : 30.0Hz, 60.0Hz
HDMI Version : 2.0b
HDMI Maximum Data Rate : 18.0Gb/s
HDCP Version : 2.2, 1.4
HDR Version : HDR 10
Switcher/Converter Type : Distribution Amplifier Splitter
Input type : HDMI
Input Connection : HDMI Type-A
Number of inputs : 1.0pc
Output Type : HDMI
Output Connection : HDMI Type-A
Number of Outputs : 2.0pc

Option: 2 Way

Variant

Price:

$224.99

Stock:

Sold out

Quantity:

⚠ Shipping Delay Notice:
Due to a national postal strike in Canada, shipments may experience delays. We are closely monitoring the situation and we are doing our best to get your orders to you as quickly as possible. We appreciate your patience and understanding during this time.

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

4K UHD Simultaneously split to two different HDMI displays from the one HDMI source, such as a Blu-ray player, set-top box, games console, or media player.

With 4K x 2K Ultra High Definition (UHD) support, there's no reduction in picture quality.

Supports audio up to 7.1 surround sound, HDCP 2.2 for the latest hardware compatibility, and 10-bit HDR (High Dynamic Range) for a wider range of lifelike colours and brightness.

The smart EDID (Extended Display Identification Data) support ensures your monitor knows how to configure correctly to match the source signal.

Features: Up to 4K x 2K Video Resolution High-Dynamic-Range (HDR) Video Support HDCP, 3D & CEC Bypass Features: . Up to 4K x 2K Video Resolution . High-Dynamic-Range (HDR) Video . EDID Data Transmission . HDCP, 3D & CEC Bypass

Specifications: Inputs: 1 x HDMI Outputs: 2 x HDMI HDMI: 2.0b HDCP: 2.2, 1.4 HDR: 10 Resolution: Up to 4K (3840 x 2160) @ 60/50/30Hz Video Bandwidth: 18Gbps Audio Support: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Power Supply: 5V, 1A Colour Depth: 10-bit Dimensions: 100(W) x 56(D) x 16(H)mm

Product Specifications

Digital Audio Format : LPCM, Dolby Digital/Plus/Ex, DTS-HD Master Audio 5.1, Dolby TrueHD, DTS-HD, Dolby Atmos, DTS-X
Width : 100.0mm
Height : 16.0mm
Depth : 56.0mm
PSU Powers : Main Product
DC Plugpack Voltage : 5.0V
DC Current Draw : 200.0mA
Suitable PSU Included : true
Supported Display Resolution : 4K UHD (3840 x 2160)
Resolution Frequency : 30.0Hz, 60.0Hz
HDMI Version : 2.0b
HDMI Maximum Data Rate : 18.0Gb/s
HDCP Version : 2.2, 1.4
HDR Version : HDR 10
Switcher/Converter Type : Distribution Amplifier Splitter
Input type : HDMI
Input Connection : HDMI Type-A
Number of inputs : 1.0pc
Output Type : HDMI
Output Connection : HDMI Type-A
Number of Outputs : 2.0pc
