Circuit Breaker (12VDC to 14VDC)

TechBrandsSKU: 165251

Circuit Breaker Type : High current
Circuit Breaker Current : 100A
Circuit Breaker DC Voltage : 14V
Circuit Breaker Pole Count : 1 pole
Packaged Volume : 0.88l
Packaged Weight : 0.11kg
Packaged Length : 15cm
Packaged Width : 13cm
Packaged Height : 4.5cm

Option: 100A

Variant

Price:

$81.99

Stock:

In stock

Quantity:

Canada Post Announcement - The Canadian Union of Postal Workers (CUPW) has started a national strike. Canada Post’s operations are temporarily suspended as of 27 November 2024. While we are doing all we can to deliver your parcels, including changing our last mile delivery partner, please expect delays. While new orders from 27 November 2024 will bypass Canada Post, orders sent before this date and still not received could be stuck in limbo until the strike is resolved. For the latest information and service updates, visit Negotiation Page

Share this product

Each device will trip within a few milliseconds under short cct conditions and feature protective rubber caps, test button and gold plated 5mm dia terminals. See Fuse & Circuit Breaker Section for full details.

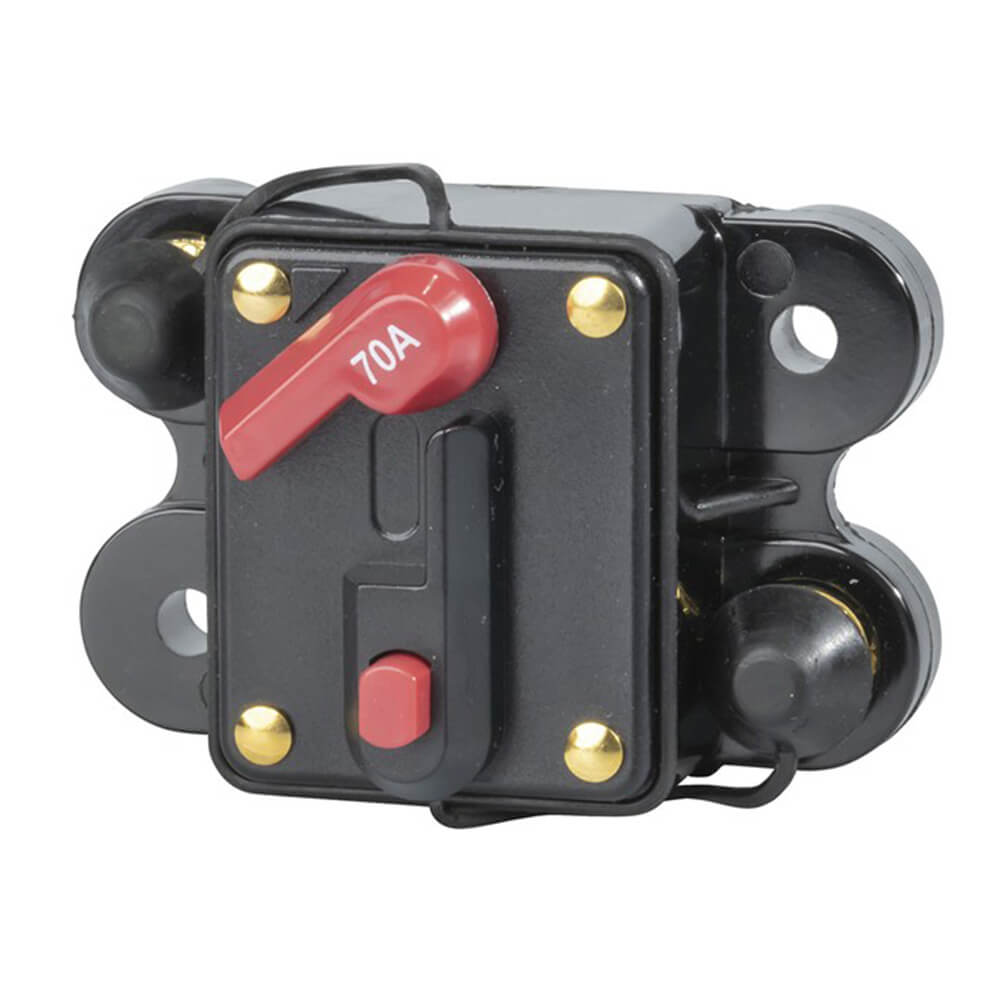

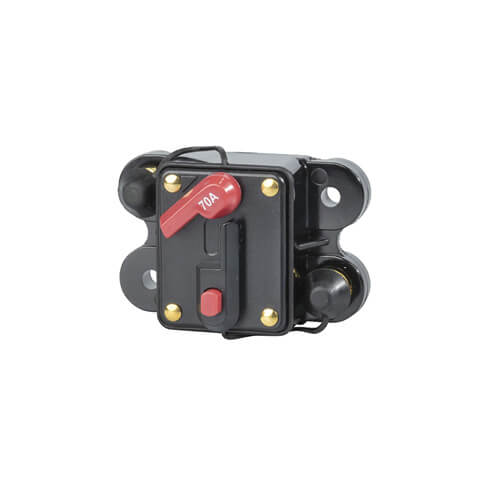

70A DC SF2265

100A DC SF2266

===========================================

Moulded in black electrical grade bakelite, these rugged and reliable devices allow you to simply reset rather than find another expensive fuse. They offer lower voltage drop than a fuse and can be used as an occasional circuit isolation switch. Two popular current ratings. Both units have the same physical dimensions. Ideal for car sound installations. Operating voltage is 12 to 14V DC

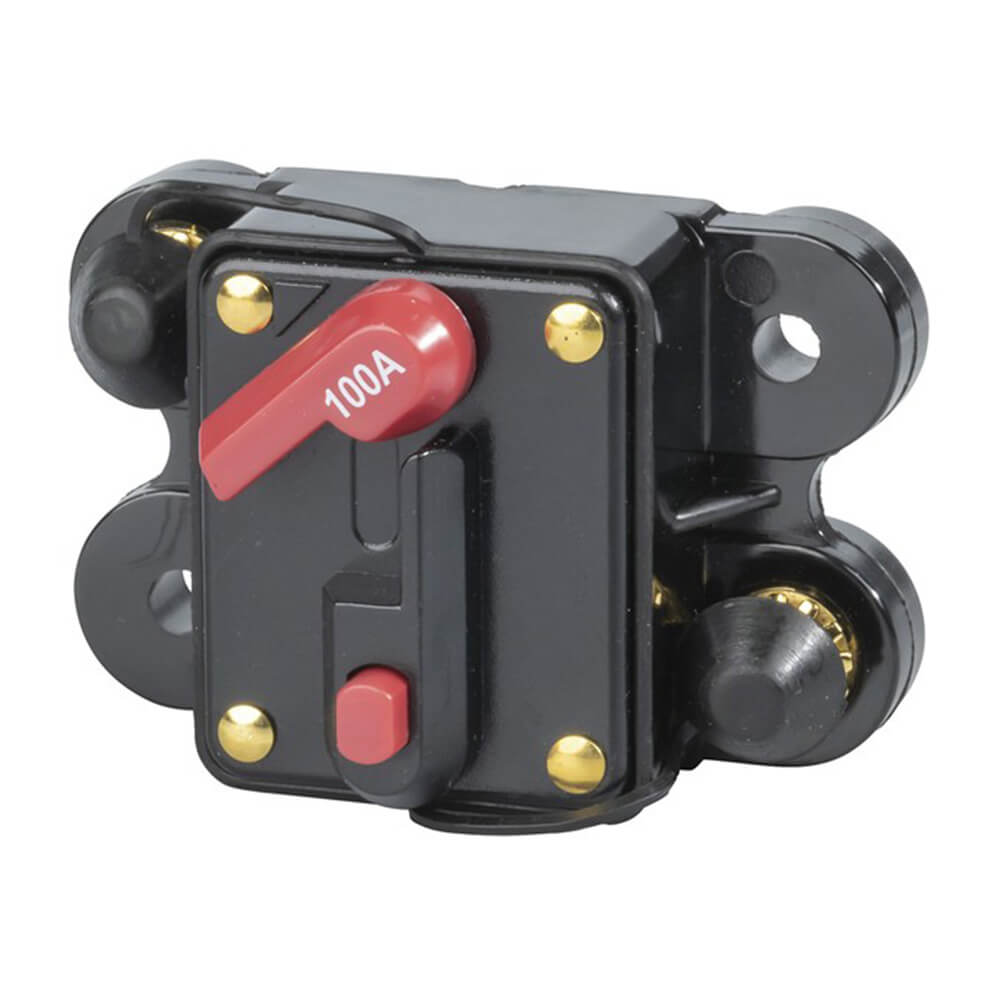

100A DC

Will trip at 110A or immediately under short circuit conditions.Supplied with 5mm dia gold plated terminals with captive shakeproof washer and provision for up to 1/4 mounting bolts. Protective rubber caps for terminals
