Battery Charger 12/24V 15A S/Mode 240V AC (9Step)

Roll over image to zoom in Click on image to zoom

Battery Charger 12/24V 15A S/Mode 240V AC (9Step)

On back order

LatestBuySKU: 27461

Short circuit and reverse polarity protection
Anti-spark protection
IP44 outdoor rated
Standby, fault, mode selection and charging LED indicators
Mounting feet for wall mounting
Safe to leave connected for months at a time
Input voltage: 170 - 260VAC
Input current: 2A max
Charging current: 12V-15A, 24V-7.5A, 12V-Calcium-5A
Efficiency: >75%
Ripple: 150mV, 300mA max
Back current drain: <5mA
IP44 Rated
Specifications
Length : 260.0mm
Width : 135.0mm
Height : 70.0mm
Rated for AU Mains : true
AC Voltage : 240.0V
Vehicle Connection : Alligator Clamps
Item Connection : Anderson Plug
Cell Type(s) Charged : SLA Block
Charger Output Voltage : 12.0V, 24.0V
Charger Output Current : 15.0mA
Controller Type : Multi-Stage
Connection Type : Alligator Clips

Price:

$286.99

Stock:

Sold out

Quantity:

Canada Post Announcement - The Canadian Union of Postal Workers (CUPW) has started a national strike. Canada Post’s operations are temporarily suspended as of 27 November 2024. While we are doing all we can to deliver your parcels, including changing our last mile delivery partner, please expect delays. While new orders from 27 November 2024 will bypass Canada Post, orders sent before this date and still not received could be stuck in limbo until the strike is resolved. For the latest information and service updates, visit Negotiation Page

Share this product

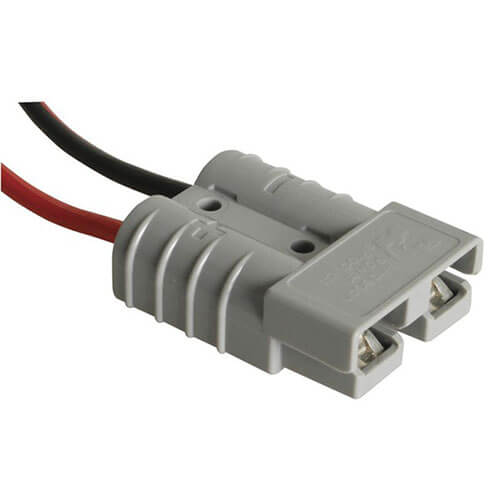

Nine step fully automatic 15 amp high current charger with maintenance charging of all types of SLA batteries as well as lead-calcium batteries from 50 - 250Ah, and either 12V or 24V. The electronics are fully microprocessor controlled and protected against user error, so is totally safe to leave connected for months at a time. This charger will also charge in sub-zero temperatures, will recover sulphated batteries and can be used as a 10A power supply. Also features "boost" modes to recover deeply discharged batteries. The battery output lead has a temperature sensor to automatically compensate charging voltage dependant on temperature, so no matter what the conditions; you will get a full charge into your battery. The output lead is also fitted with Anderson connectors to allow for easy connection to existing wiring or use of the included alligator clips or bolt terminals.

NOTE: These chargers are not recommended for long-term "maintenance" charging of unsealed lead-acid batteries, the types with removable filler caps and liquid elctrolyte. Long-term continuous float charging of this type of battery may cause loss of water from the electrolyte, ruining the battery. If you are intending to use this charger on these batteries please use an appliance timer such as MS6113 to automatically limit the charging to 30 minutes or so per day.

Product Specifications
