Description

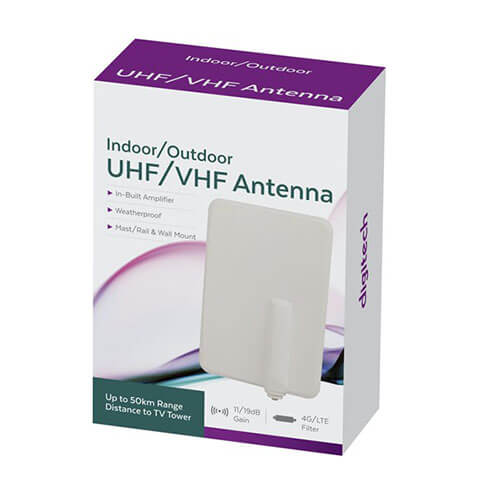

This slim indoor/outdoor antenna is very easy to install and is supplied with mounting hardware for wall, mast or rail mount. An in-built amplifier with 4G/LTE filter provides optimal UHF and VHF signal reception for DVB-T, DVB-T2 and DAB radio. The antenna is weatherproof IPX4 and can be mounted horizontally or vertically for best positioning. Reception distance of up to 25km from the TV tower when mounted indoor and up 50km away when mounted outdoor.
Features:
- 11/19dB Gain
- 4G/LTE Filter
- In-Built Amplifier
- Weatherproof
- Mast/Rail & Wall Mount
- Up to 25km Indoor Range (up to 50km Outdoor)
Included: 1 x Indoor/Outdoor UHF/VHF Antenna
1 x 4m F to F Antenna Cable
1 x 4m F to PAL Antenna Cable
1 x Flat Window Antenna Cable
1 x F to F Adaptor
1 x Power Injector
1 x Mains Power Adaptor
1 x Mast/Rail Clamp
1 x Mast/Rail & Wall Mounting Hardware
Product Specifications
- Line of Sight Range : 25.0km, 50.0km
- DC current rating : 550.0mA
- DC Voltage : 5.0V
- IP Rating : IPX4
- Dust/Particle Ingress Protection : IPX - Not rated
- Liquid/Moisture Ingress Protection : 4 - Splashing water
- Width : 165.0mm
- Height : 230.0mm
- Depth : 5.0mm
- DC Current Draw : 50.0mA
- Mounting Method : In Wall, Pole Mount
- RF type : PAL/Belling-Lee
- RF impedance : 75.0Ohm
- Antenna Type : Flat Panel
- Usage Location : Indoor, Outdoor
- Reception Bands : TV Band 3: 174-230MHz, TV Band 4: 526-582MHz, TV Band 5: 582-694MHz
- UHF Frequency Range : 470.0MHz, 694.0MHz
- UHF Channel Range : 25.0ch, 69.0ch
- UHF Gain : 19.0dB
- VHF Frequency Range : 170.0MHz, 230.0MHz
- VHF Channels Covered : 6.0ch, 12.0ch
- VHF Gain : 11.0dB
| Length : 28.3 cm | Width : 20 cm |
| Height : 10 cm |
