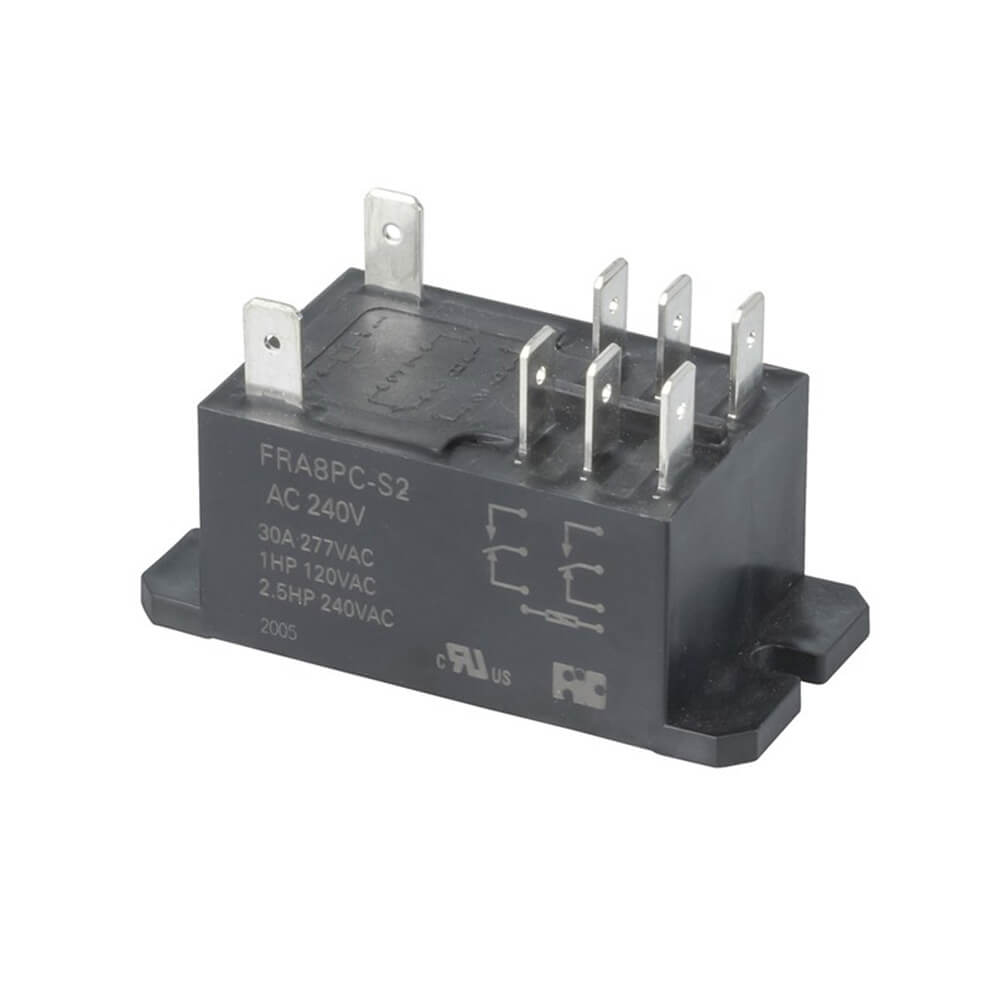

AC Panel Mount Relay (240V)

TechBrandsSKU: 164787

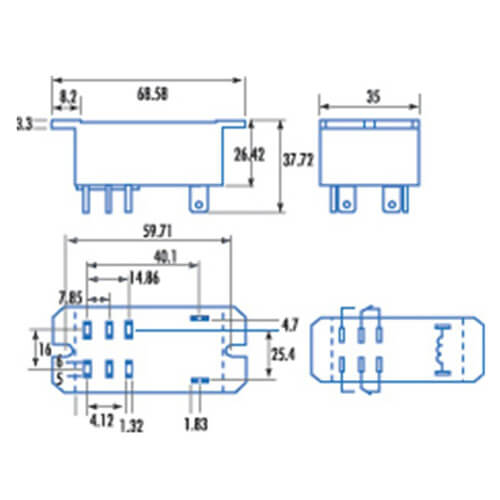

Length : 68.58mm
Width : 37.72mm
Height : 35mm
AC Voltage : 240V
AC Current Draw : 30A
Mounting Method : PanelChassis
Packaged Volume : 0.07l
Packaged Weight : 0.08kg
Packaged Length : 6.5cm
Packaged Width : 3.2cm
Packaged Height : 3.5cm
Input : DC or AC Dual Mode
Contact format : DPDT
Coil Resistance : 3800Ω
AC Contact Voltage : 240V

Price:

$58.99

Stock:

In stock
